Aluminum Landing Craft

Aluminum Landing Craft

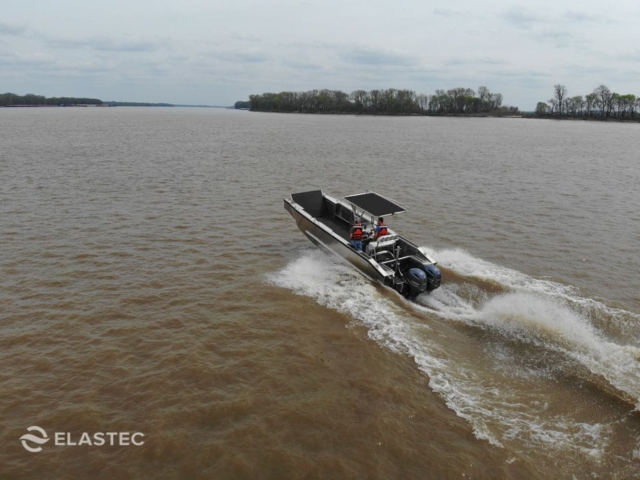

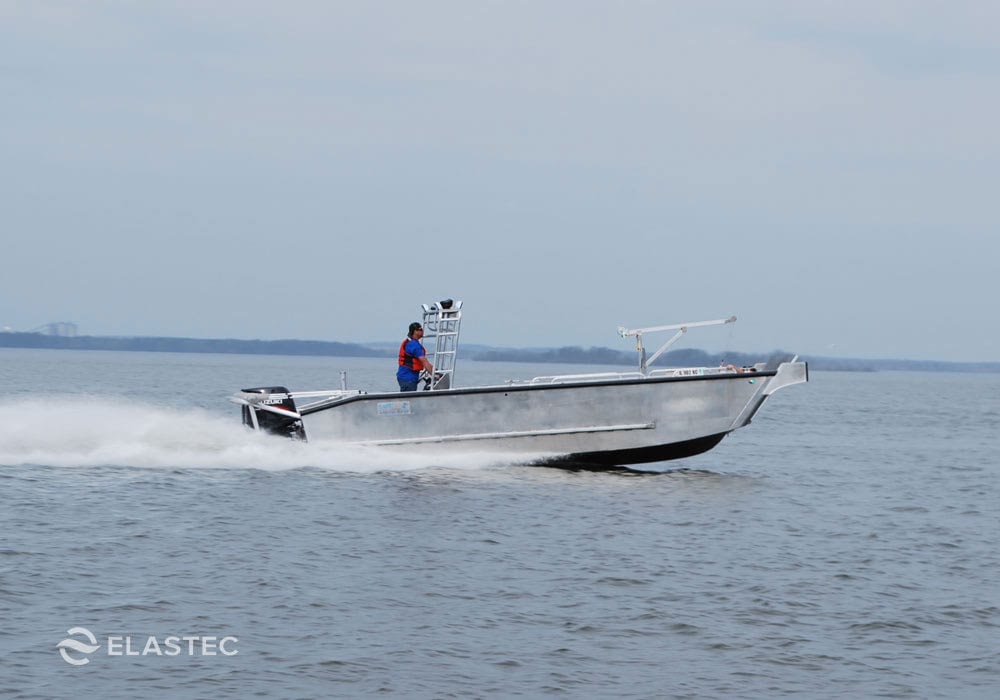

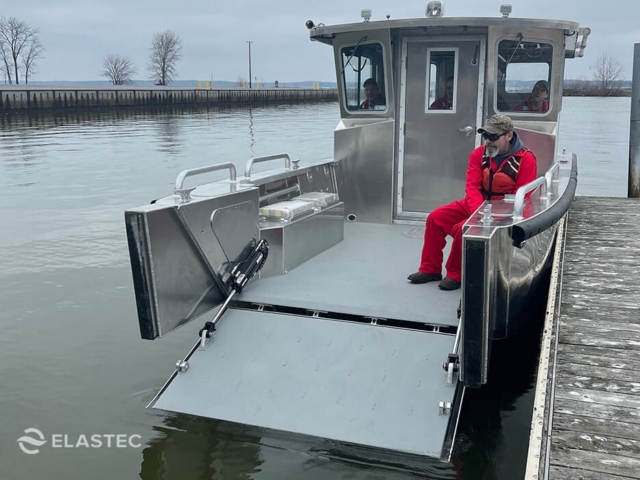

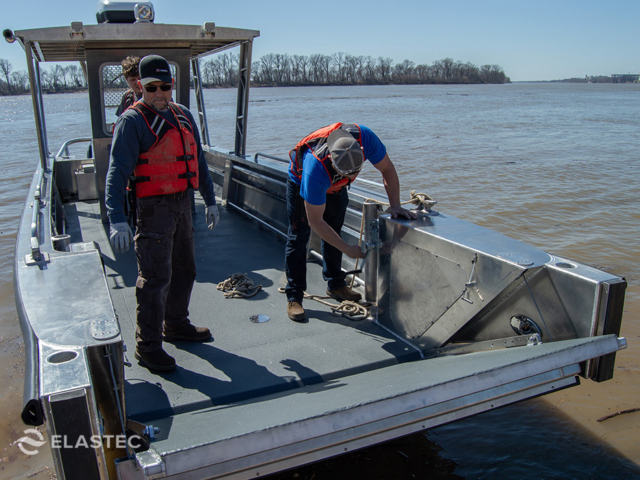

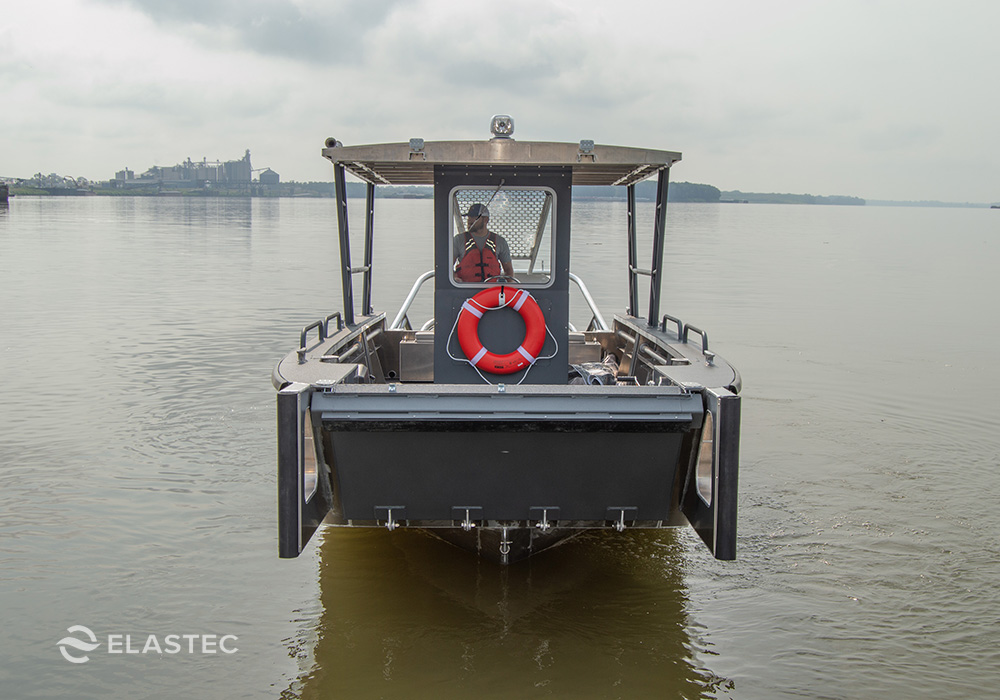

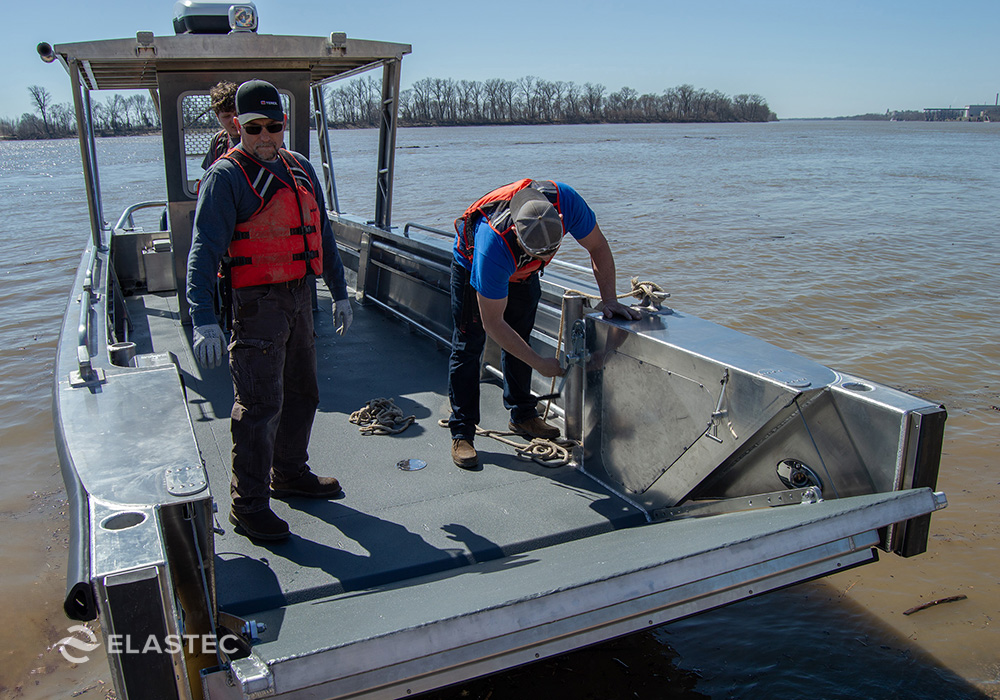

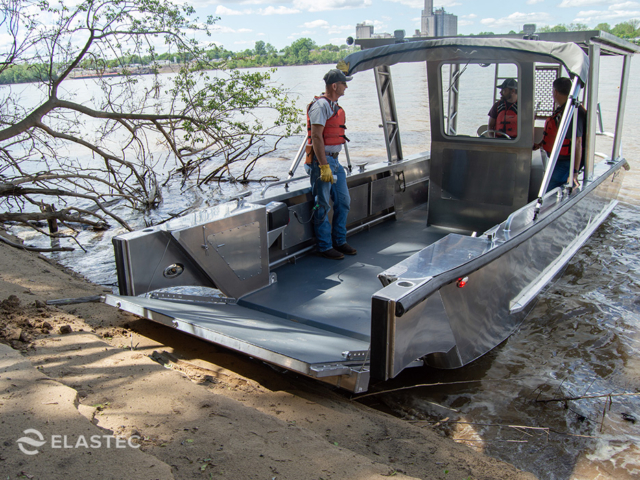

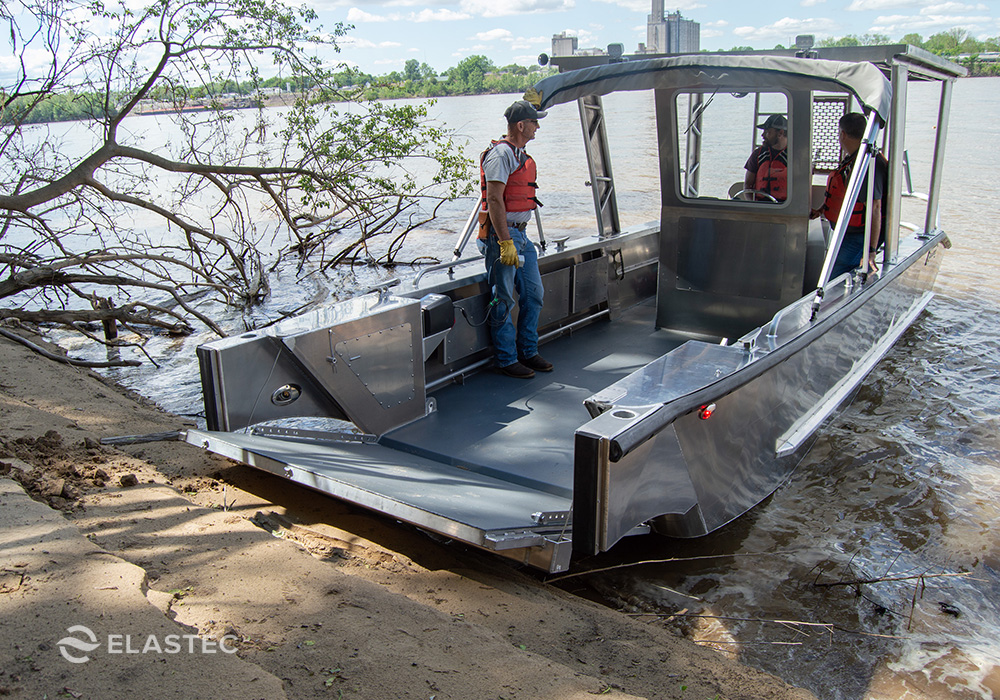

ELASTEC Aluminum Landing Craft are often used for oil spill recovery and waterway maintenance operations. They can be fitted with a choice of outboard motors. The spacious hull can carry a range of loads and offers a large deck area. The bow ramp is convenient for loading equipment and utility vehicles. We can custom build a boat to your specifications.

We manufacture a range of landing boats that can be employed in a variety of roles such as fast response and supporting marine operations (oil spills, rescue, firefighting etc.) They are based on well-proven designs from a reputable naval architect with years of experience. Stable high-performance hulls that can be configured in a wide variety of ways. The landing boat open bow feature facilitates the transfer of equipment from land to water for a variety of applications.

Model
E20
E23
E26C
E26R
E26W

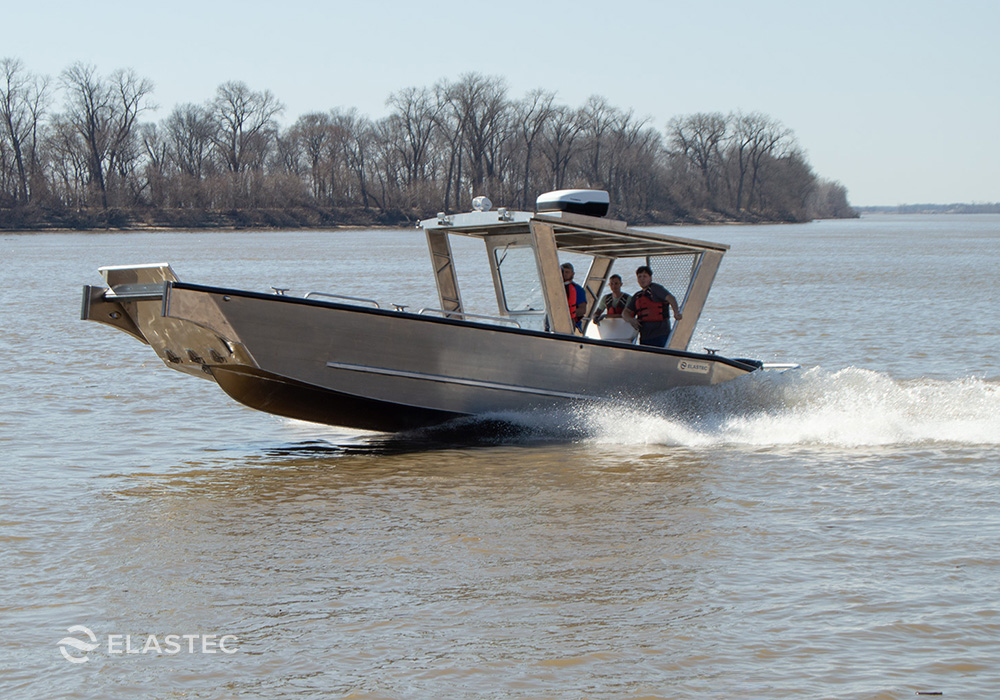

E28
E32
Cargo Door
64 inches /
1.62 m
64 inches /
1.62 m
64 inches /
1.62 m
60.5 inches /
1.53 m
65.5 inches / 1.66 m
64 inches /
1.62 m
72 inches /
1.82 m
Length
20 ft 7 inches /
6.3 m
23 ft /
7 m
26 ft 9 inches /
8.1 m
26 ft 2 inches /
8.0 m
26 ft / 7.9 m
28 ft 1 inch /
8.56 m
31 ft 6 inches /
9.6 m
Beam
8 ft 1 inch /
2.46 m
8 ft 1 inch /
2.46 m
7 ft 4 inches /
2.24 m
8 ft 2 inches /
2.5 m
9 ft 4 inches / 2.8 m
8 ft 1 inch /
2.46 m
10 ft 4 inches /
3.15 m
Max Cargo*
2,000 lb /
907 kg
3,000 lb /
1,360 kg
5,000 lb /
2,268 kg
5,000 lb /
2,268 kg
6,500 lb / 2,948 kg
5,500 lb /
2,495 kg
8,000 lb /
3,629 kg

PROJECT: DIVING LANDING CRAFT

Description

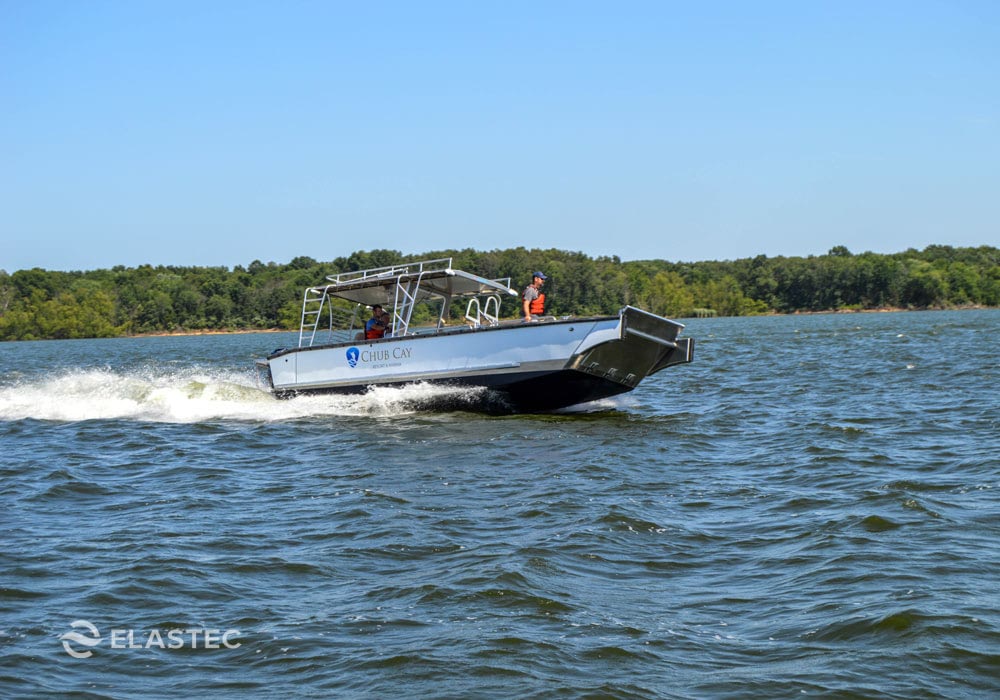

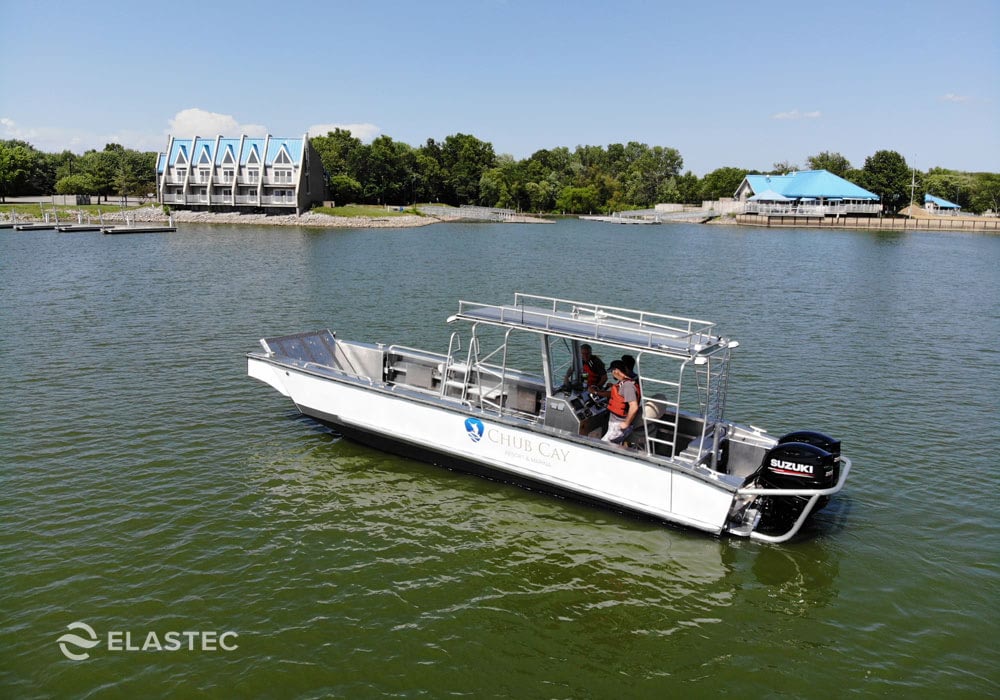

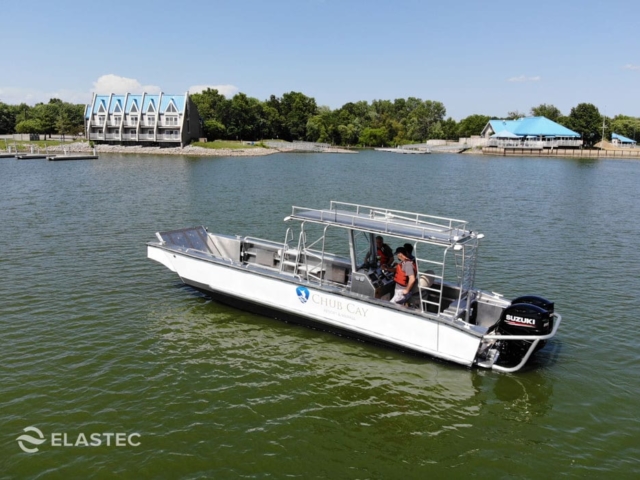

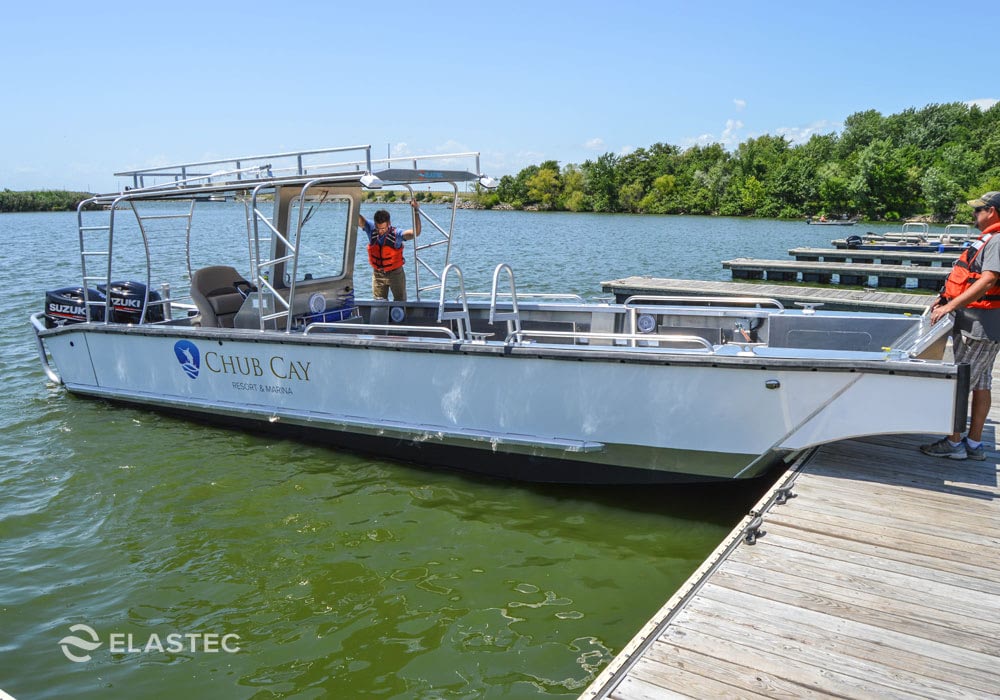

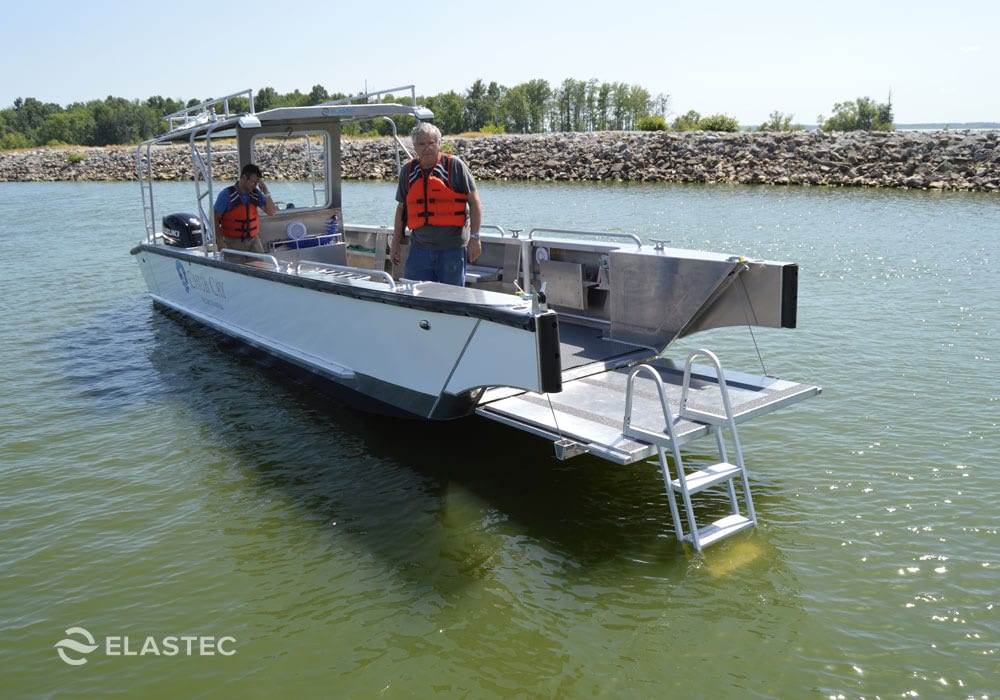

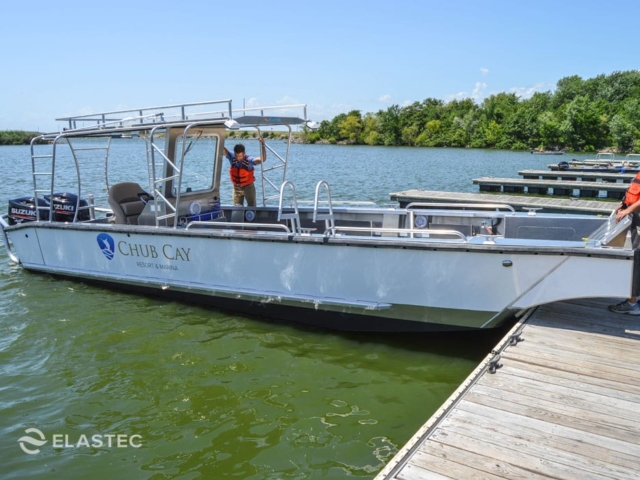

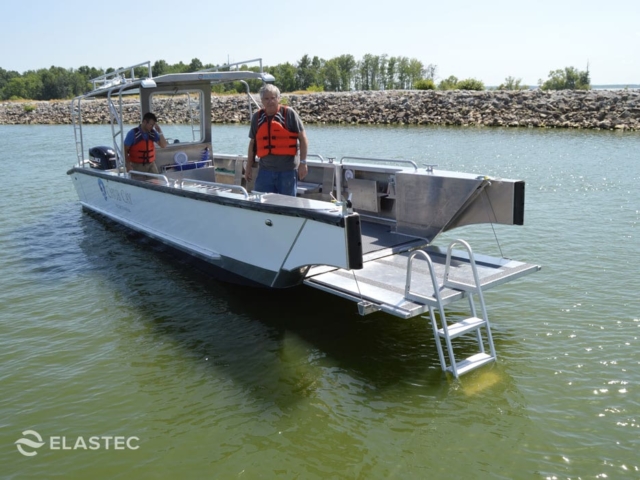

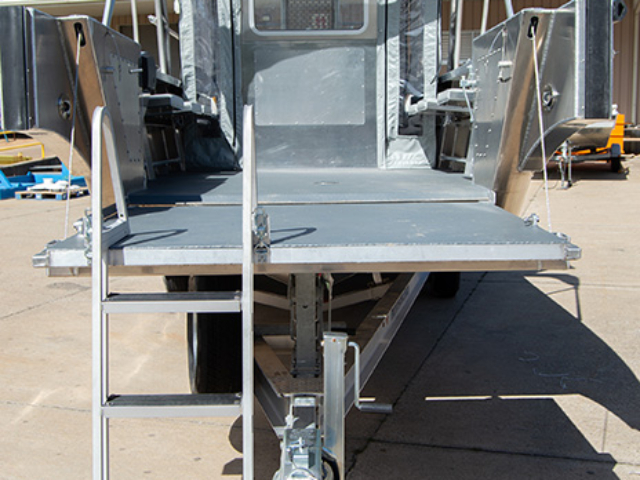

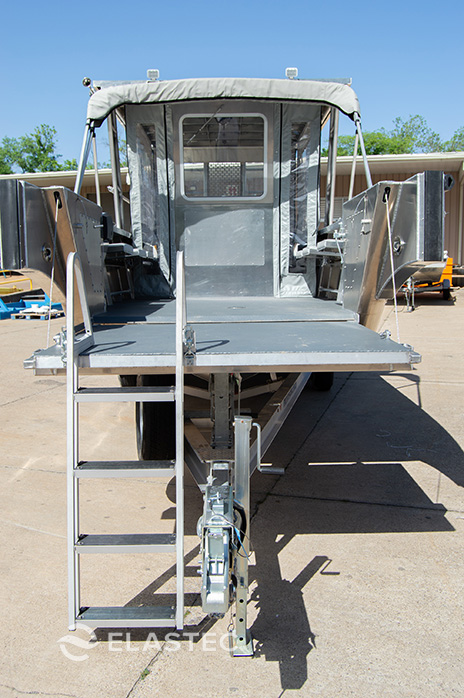

A resort needed a boat to use for diving expeditions. Elastec buit this landing craft with several features to accommodate diving, including an attachable ladder.

Up to 50 MPH
Modified V Hull
Twin outboards

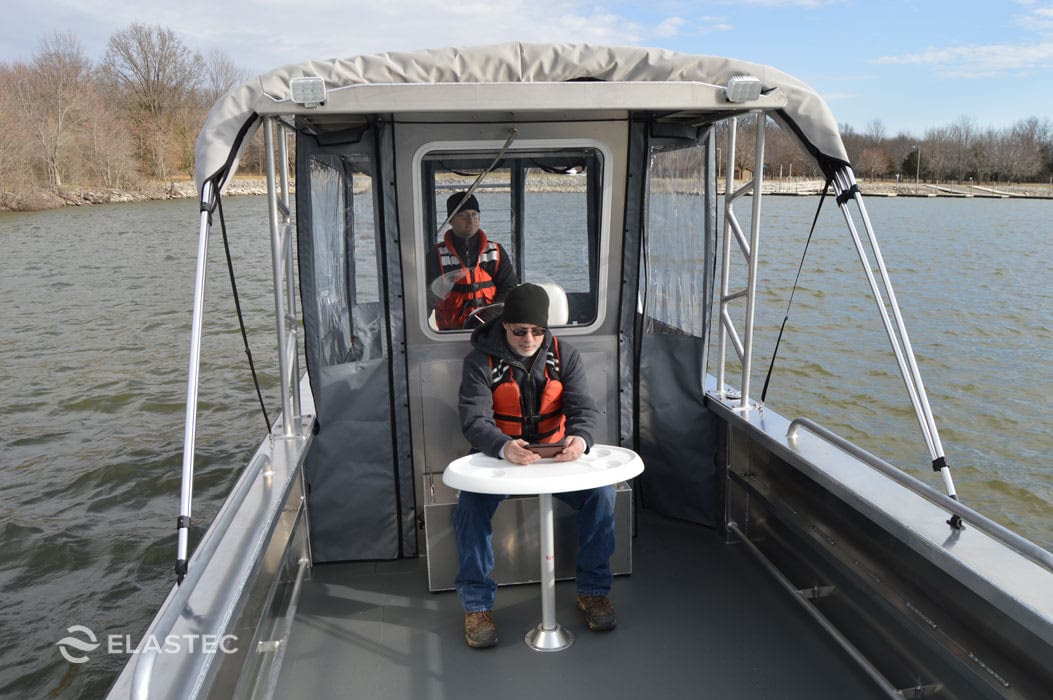

PROJECT: DECK TABLE LANDING CRAFT

Description

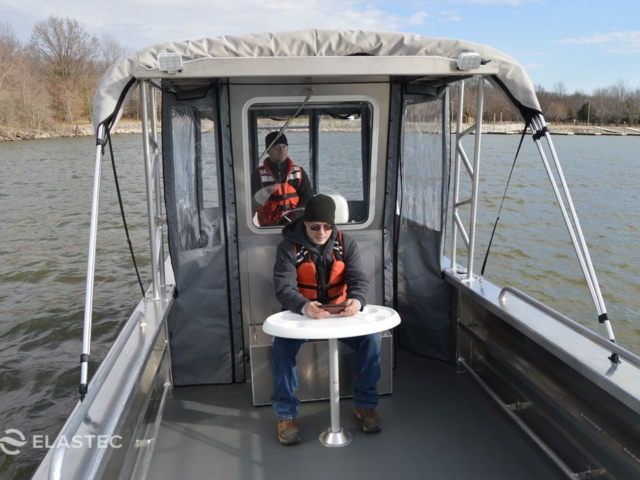

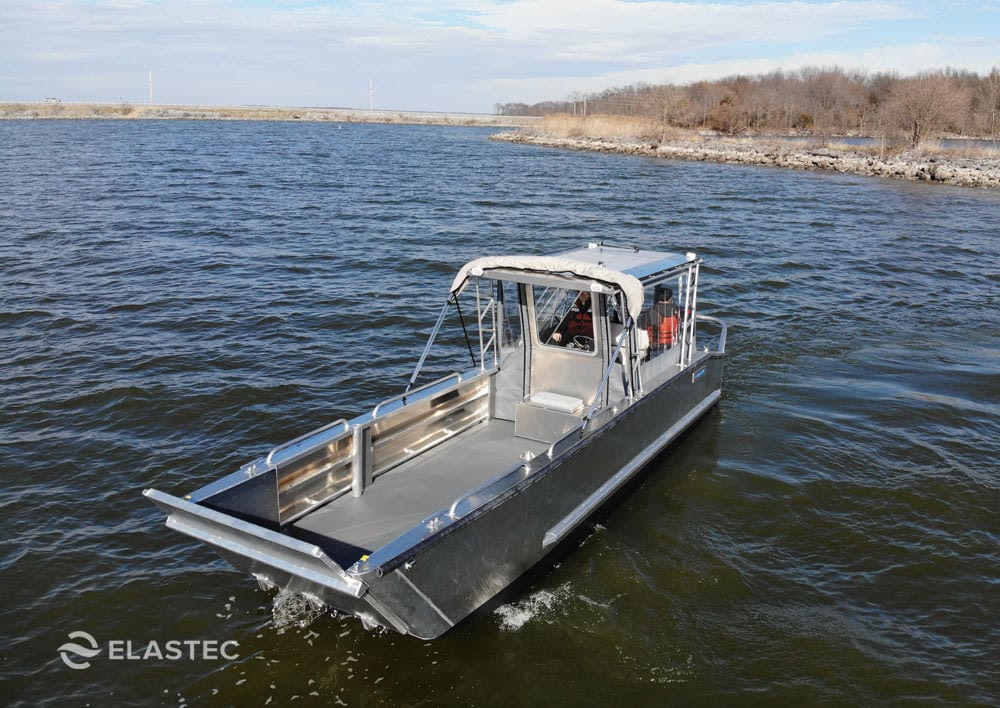

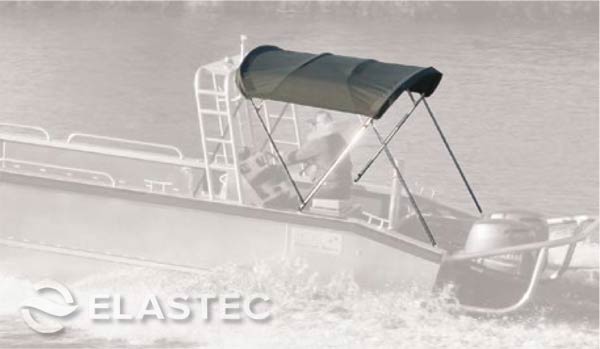

This landing craft was built to aid in construction operations on a remote island. It features a removable table, a vinyl cabin enclosure, and a Bimini over the bow for additional shade.

Up to 50 MPH
Modified V Hull
Twin outboards

PROJECT: USACE LANDING CRAFT

Description

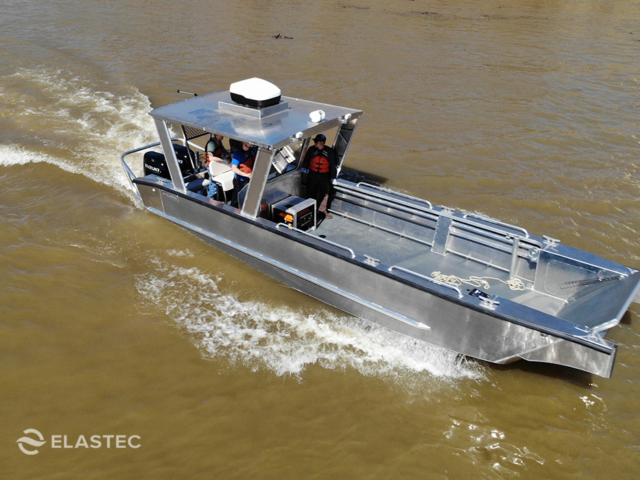

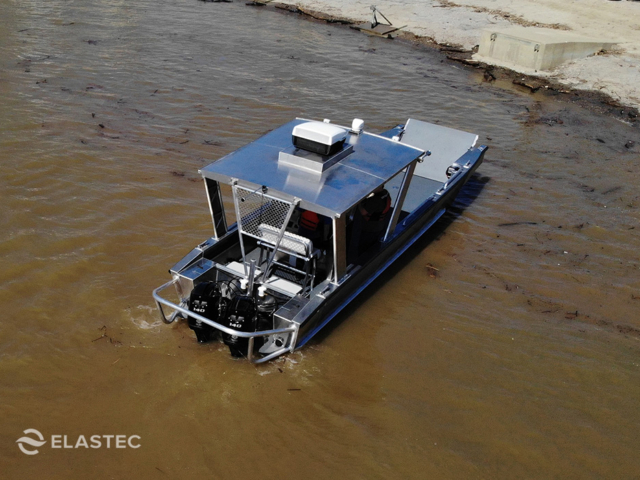

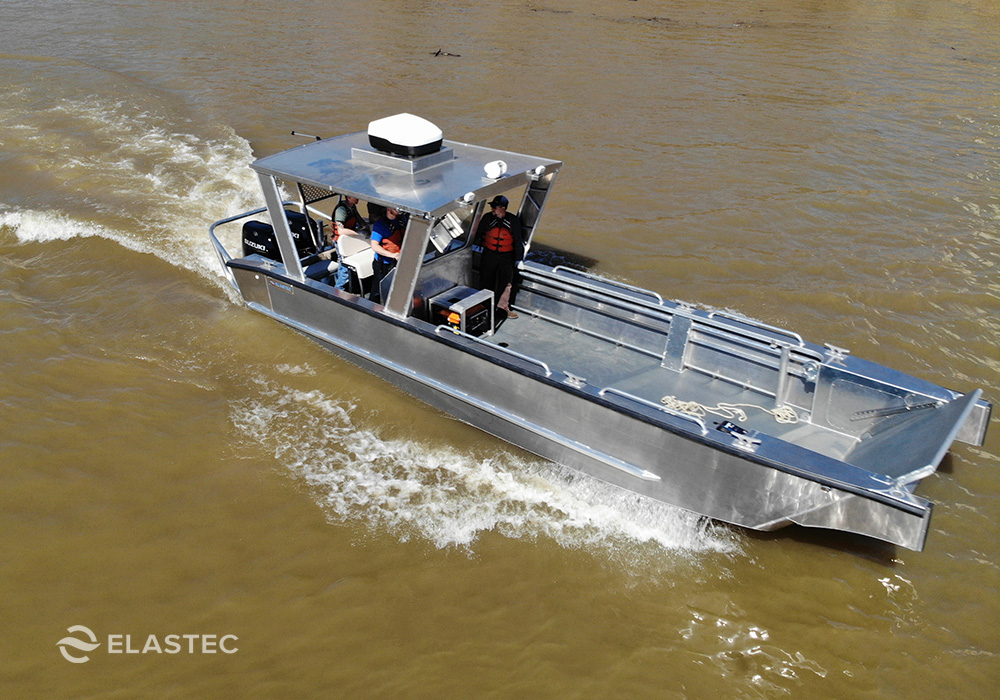

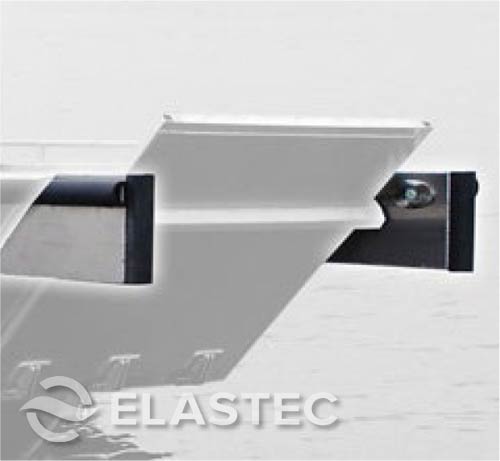

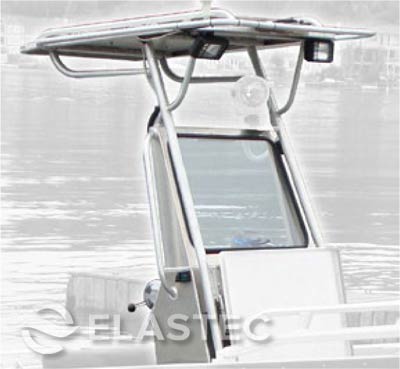

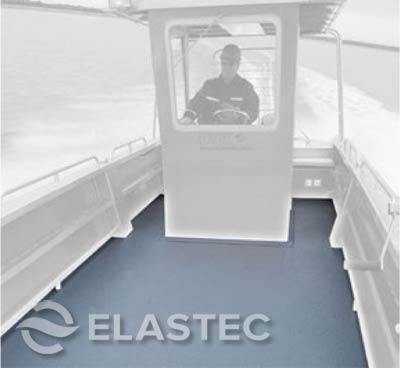

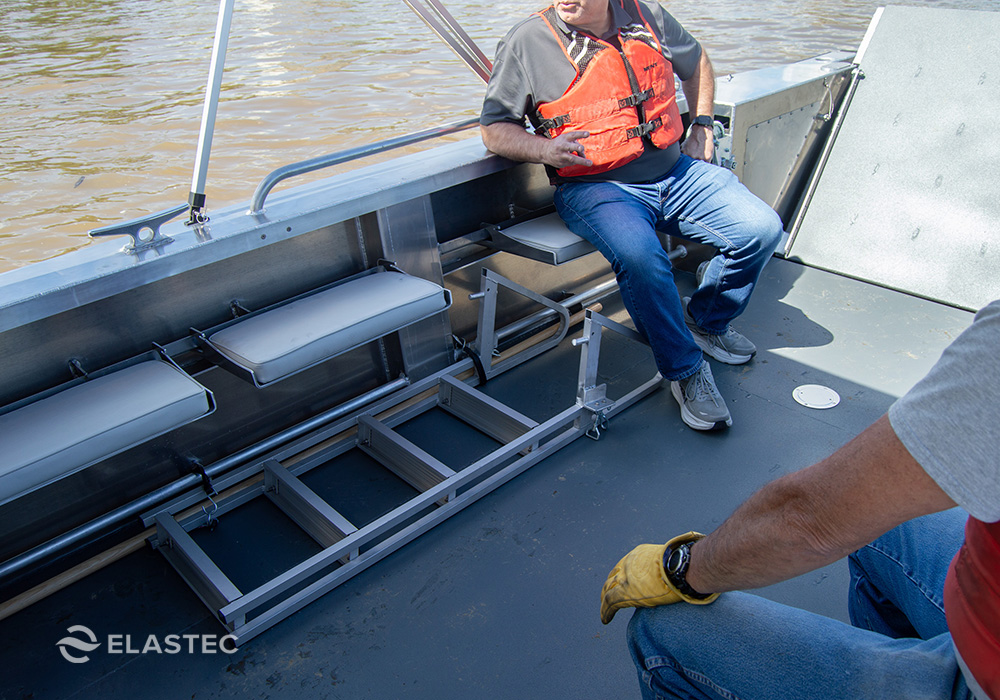

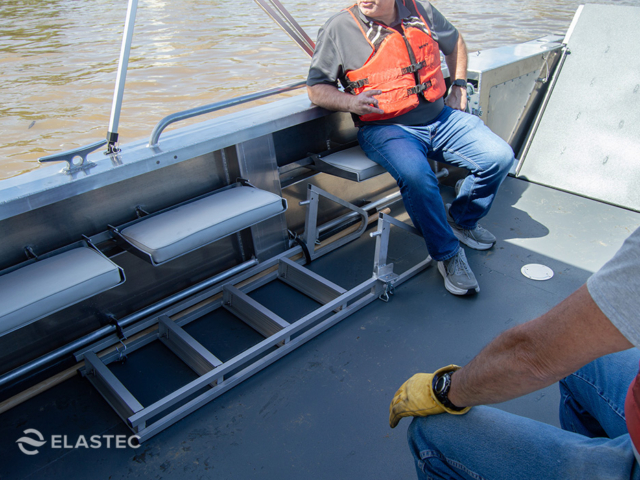

This landing craft was built for the Army Corps of Engineers to assist in dam, bridge, and waterway maintenance. It features twin outboard motors, a T-top, anti-slip coating, additional fold-down seating for crew, and push knees.

Up to 50 MPH
Modified V Hull
Twin outboards

PROJECT: BARGE HANDLING LANDING CRAFT

Description

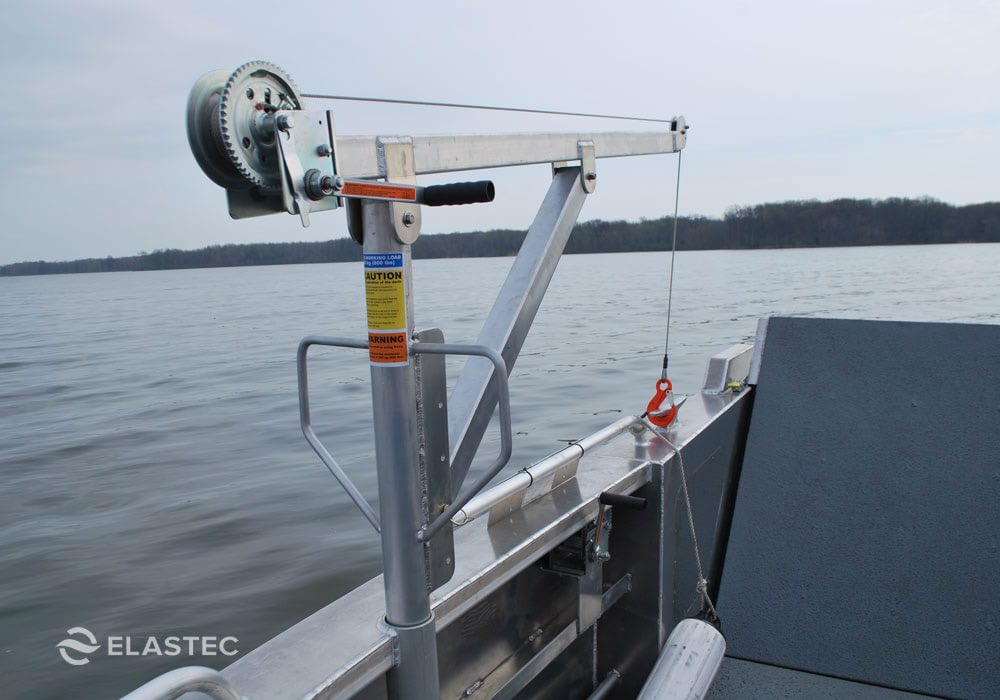

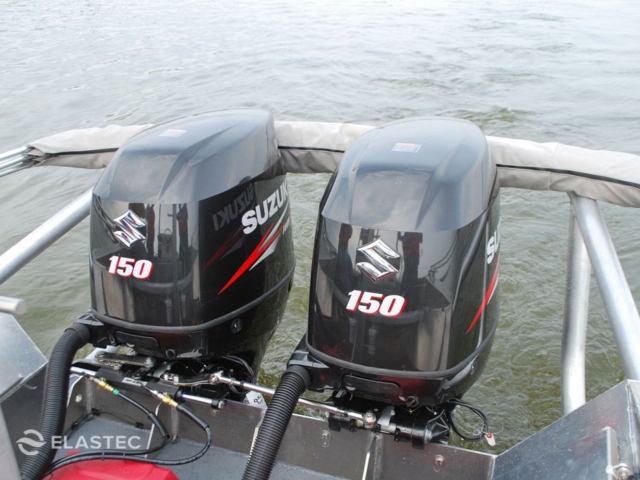

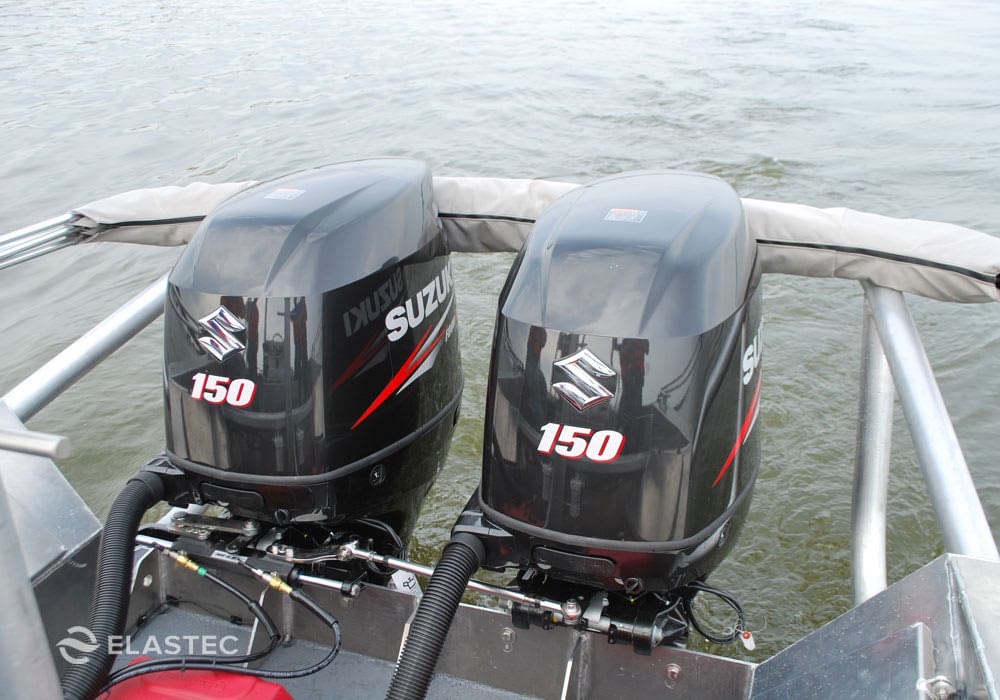

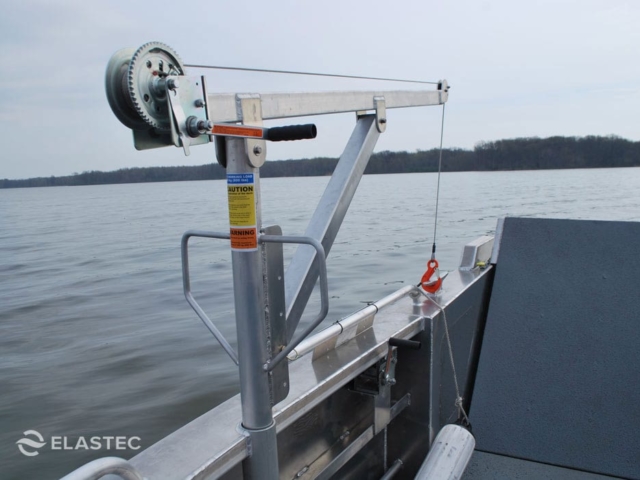

This boat features twin 150 HP outboard motors, push knees, an open deck and davit. It was built to assist in barge handling.

Up to 50 MPH
Modified V Hull
Twin outboards

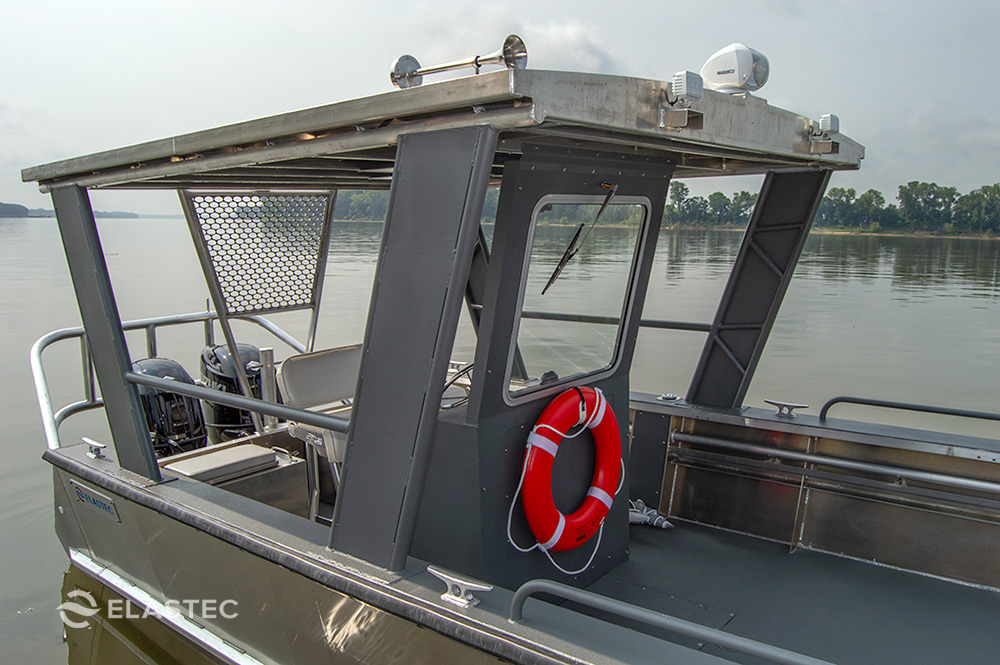

PROJECT: FULL CABIN LANDING CRAFT

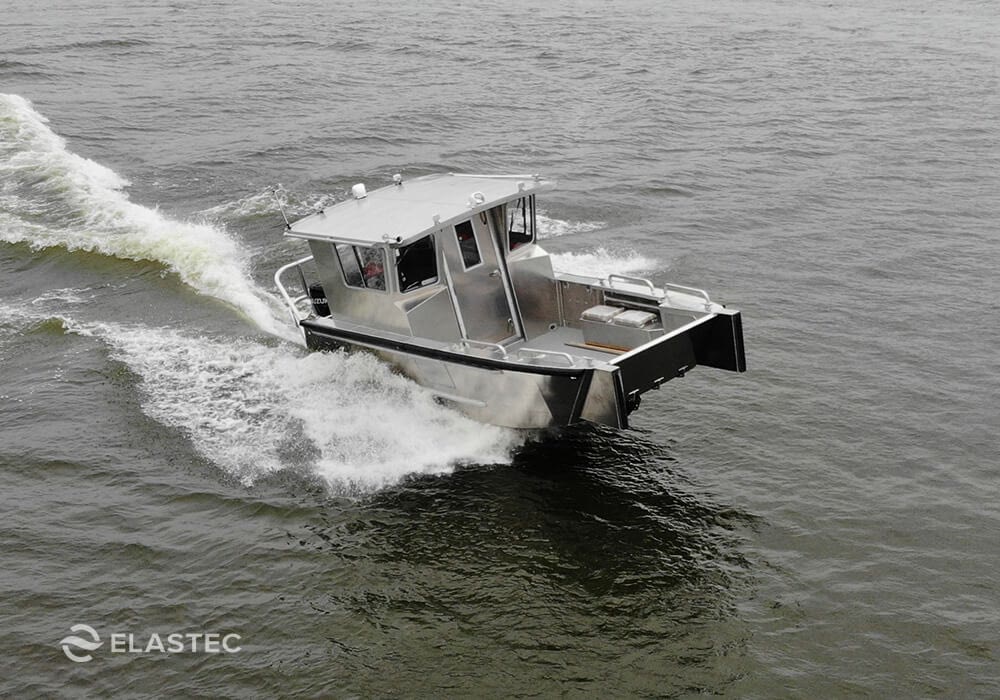

Full cabin aluminum landing craft

Description

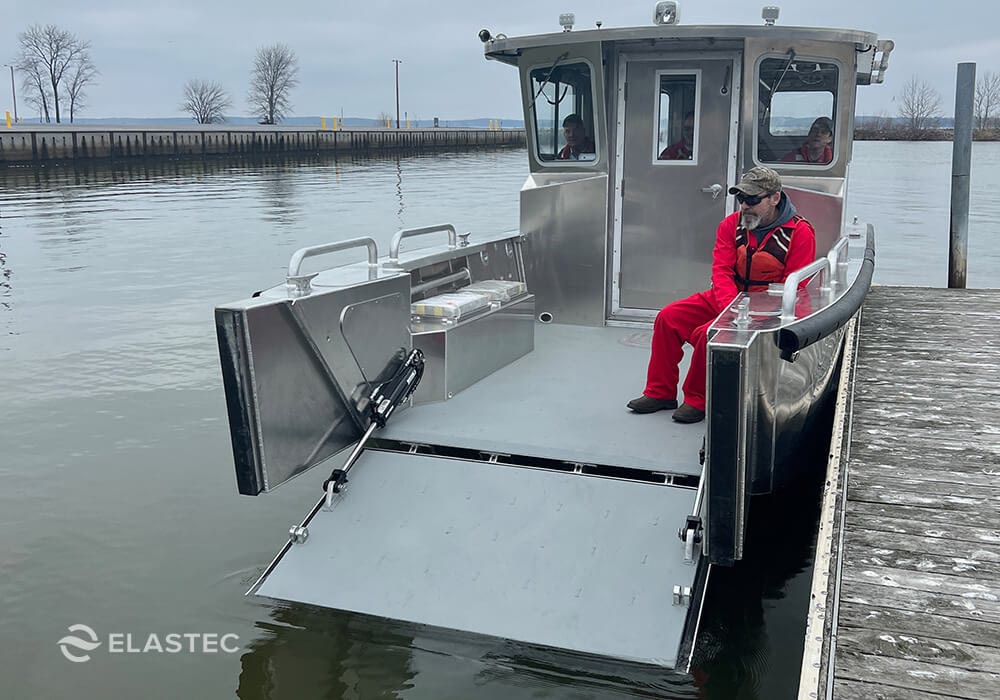

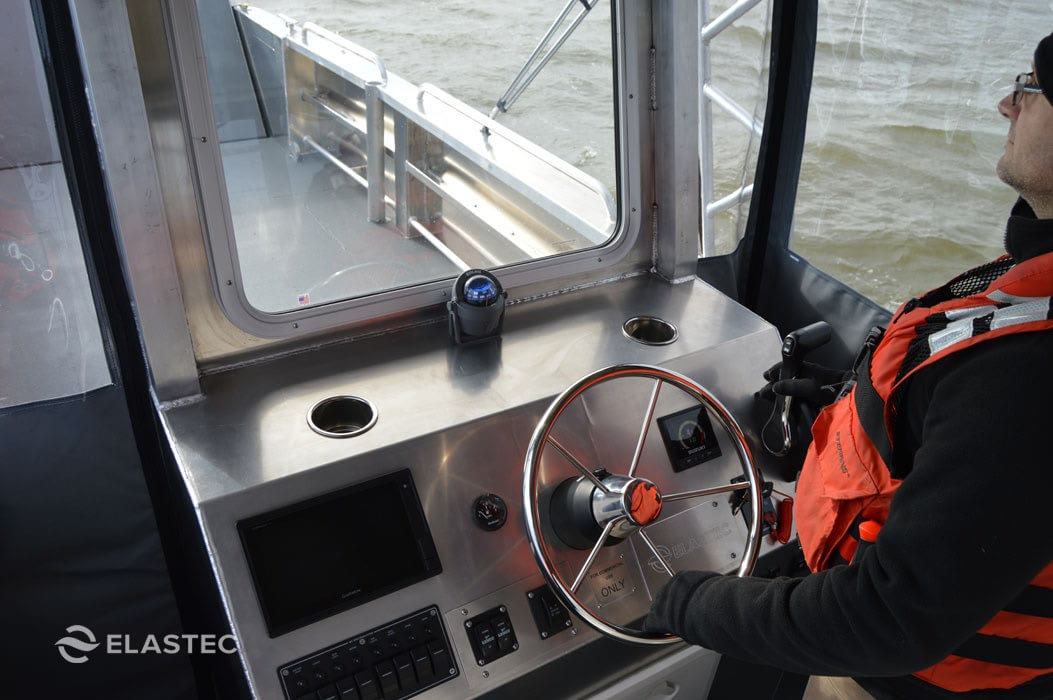

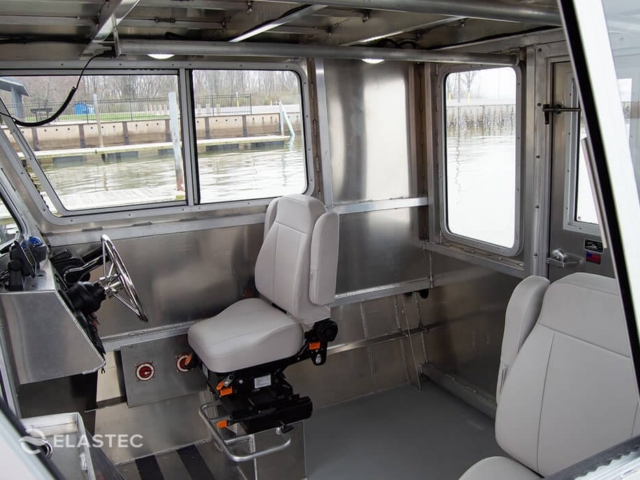

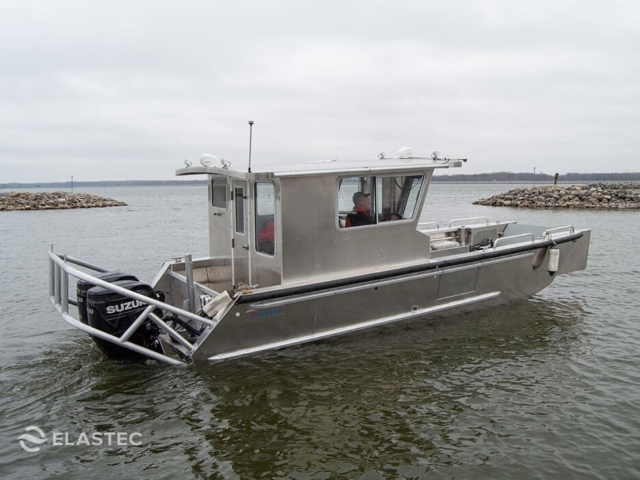

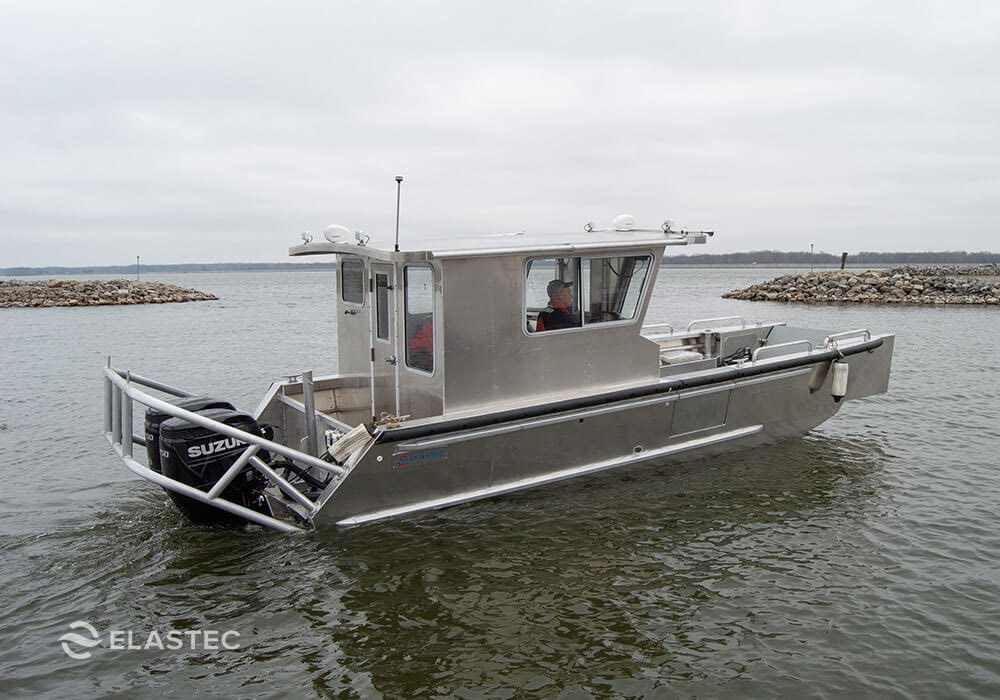

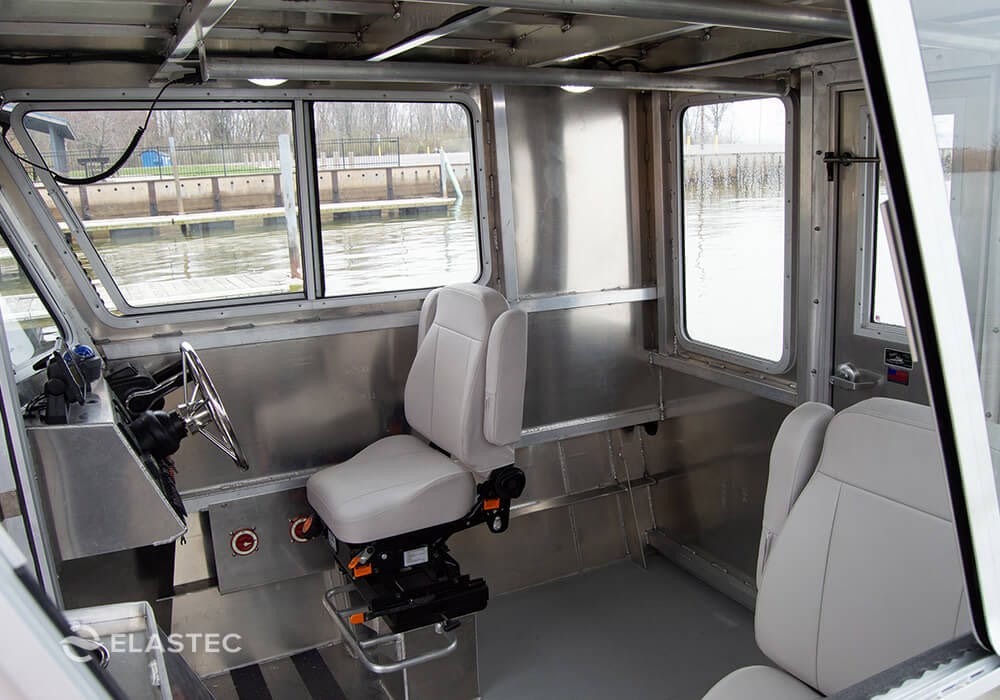

This landing craft was with a full cabin for use in reservoir maintenance and border patrol operations. The cabin features a front and back door, slide out side doors, and a hydraulically operated bow ramp.

Up to 50 MPH
Modified V Hull
Twin outboards

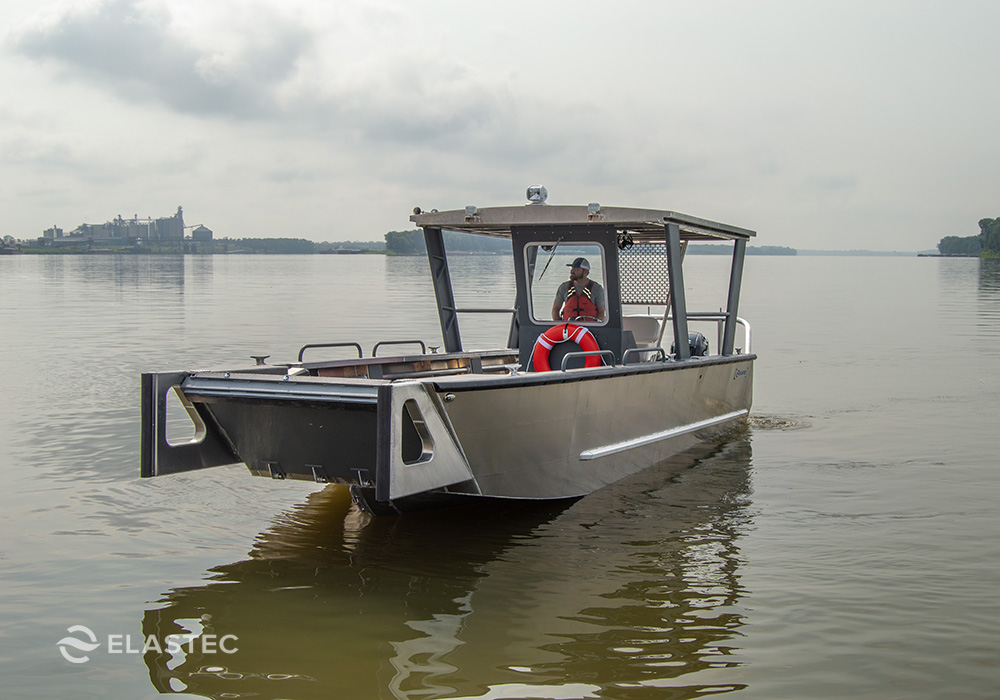

PROJECT: ANCHOR BAG LANDING CRAFT

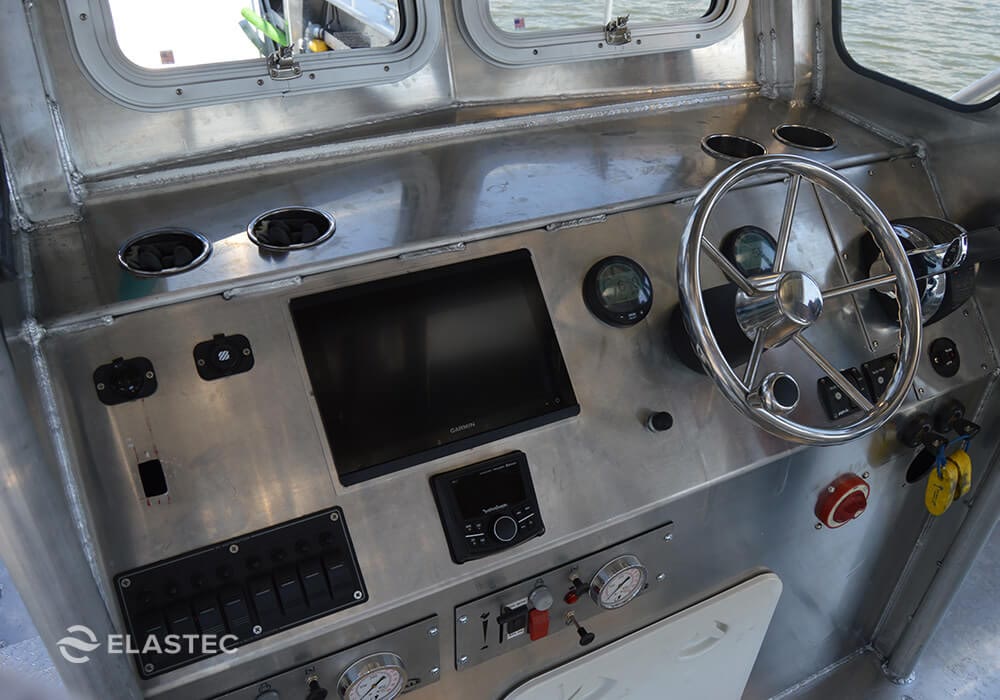

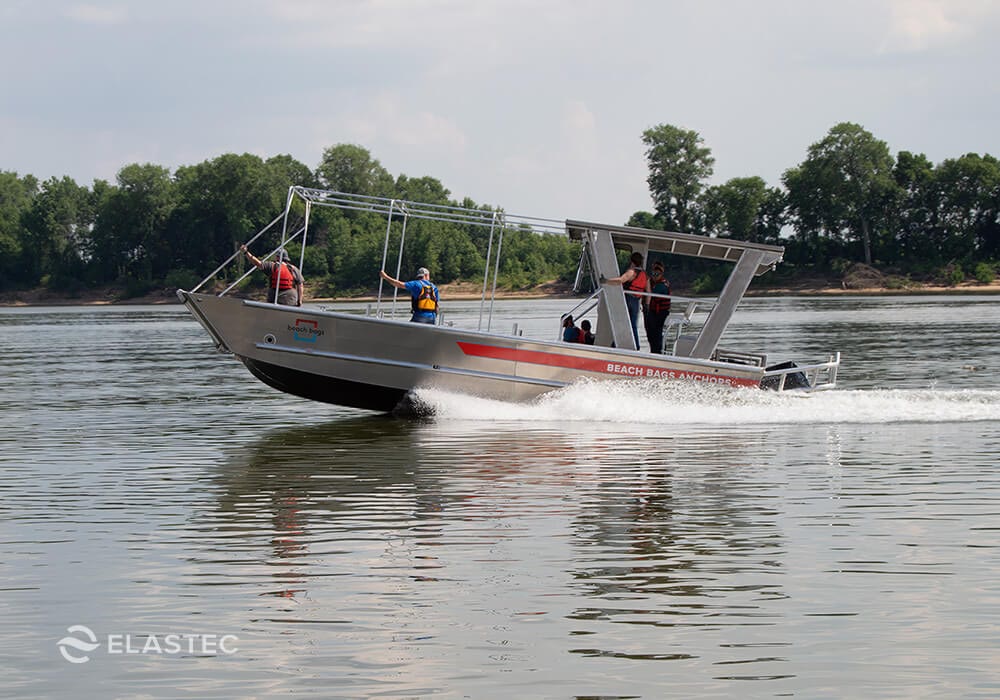

32 foot aluminum landing craft

Description

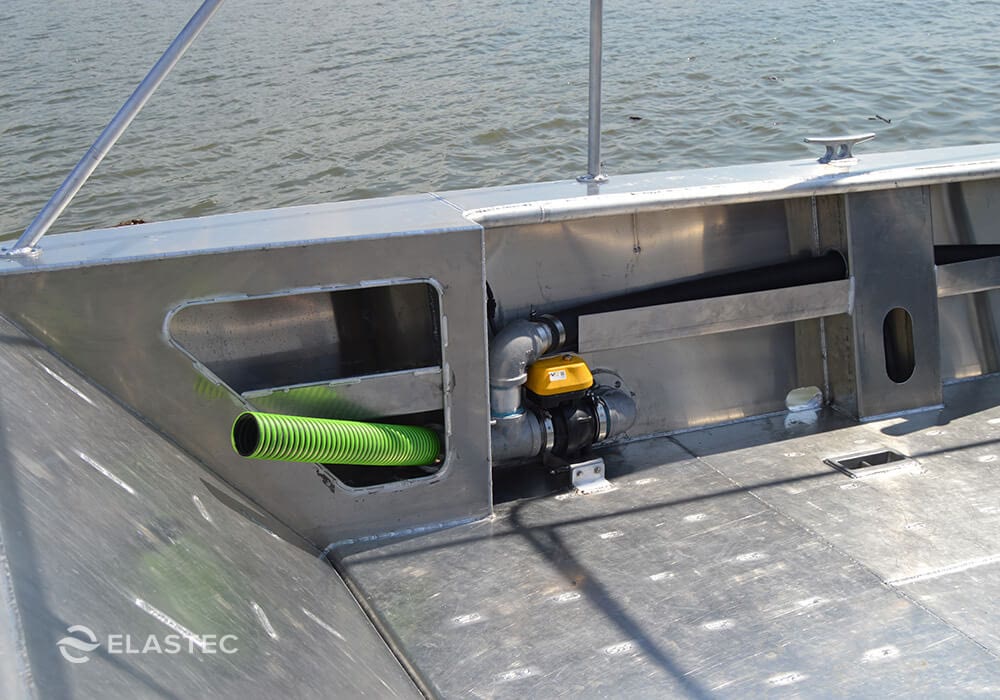

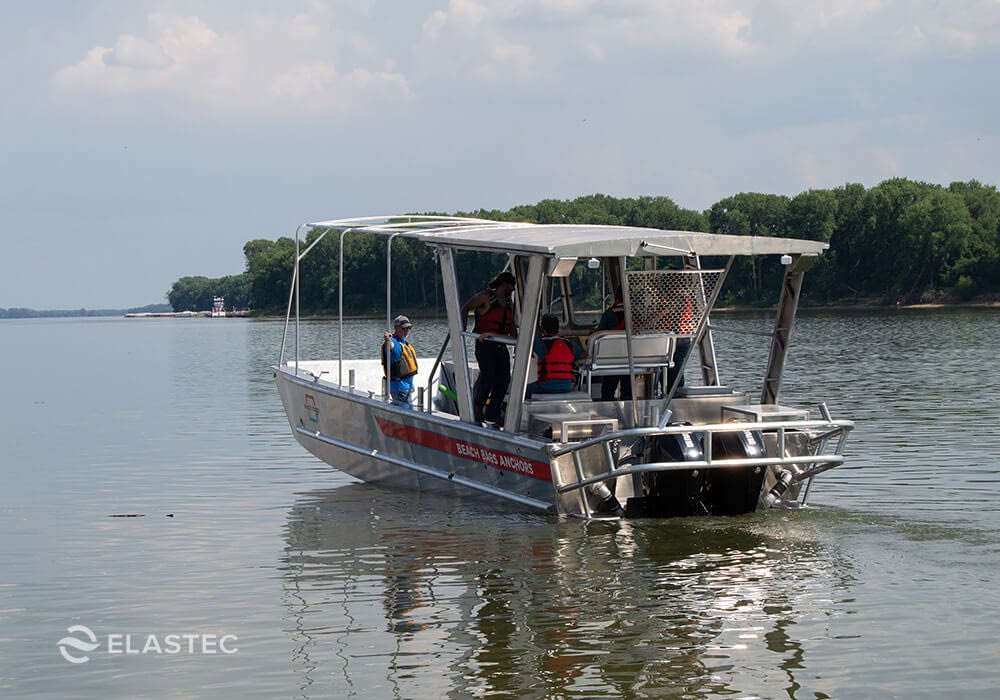

This 32 foot aluminum landing craft features a pump system for filling portable beach anchor bags. Its length allows for a larger payload area to haul more equipment.

Up to 50 MPH
Modified V Hull
Twin outboards

*Other motor configurations are available. Maximum speed is determined by motor horsepower and other factors.
