Platform Work Boat

Platform Work Boat

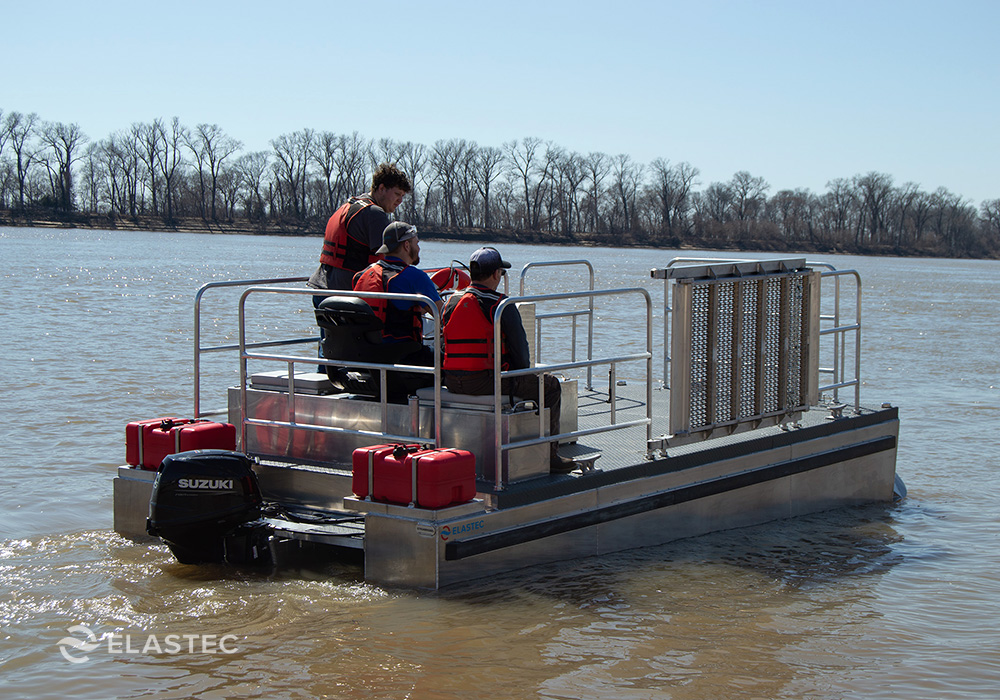

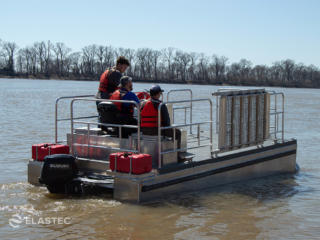

The ELASTEC Platform Work Boat (specs) is manufactured at our Carmi, Illinois USA facility. Its rugged design allows for this versatile utility service barge to perform a variety of waterway maintenance and marina tasks. This vessel requires minimal upkeep as it has few moving parts and its propulsion is provided by a single outboard. Custom deck arrangements are available per your design or project specifications.

Designed for sheltered waters, ELASTEC Platform Boats are manufactured from high-quality marine-grade aluminum. The open deck arrangement and removable railings allow for an unobstructed workspace over the water. The all-aluminum hull and deck allow for project-specific equipment to be bolted or welded to the deck. Custom deck arrangements are available per your design or our design per your specifications.

Elastec’s GSA contract number is 47QSWA19D0007.

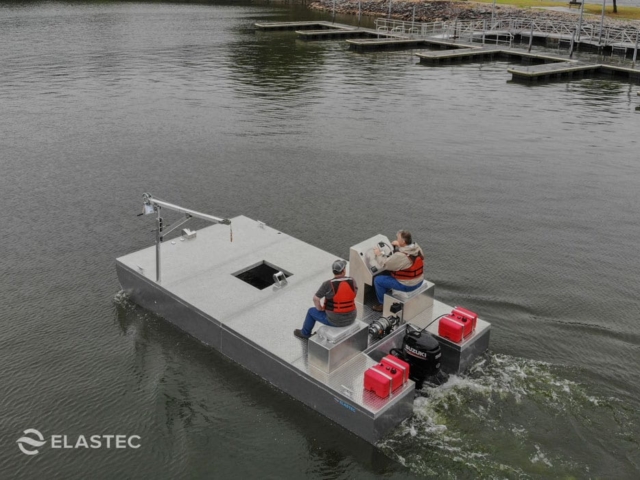

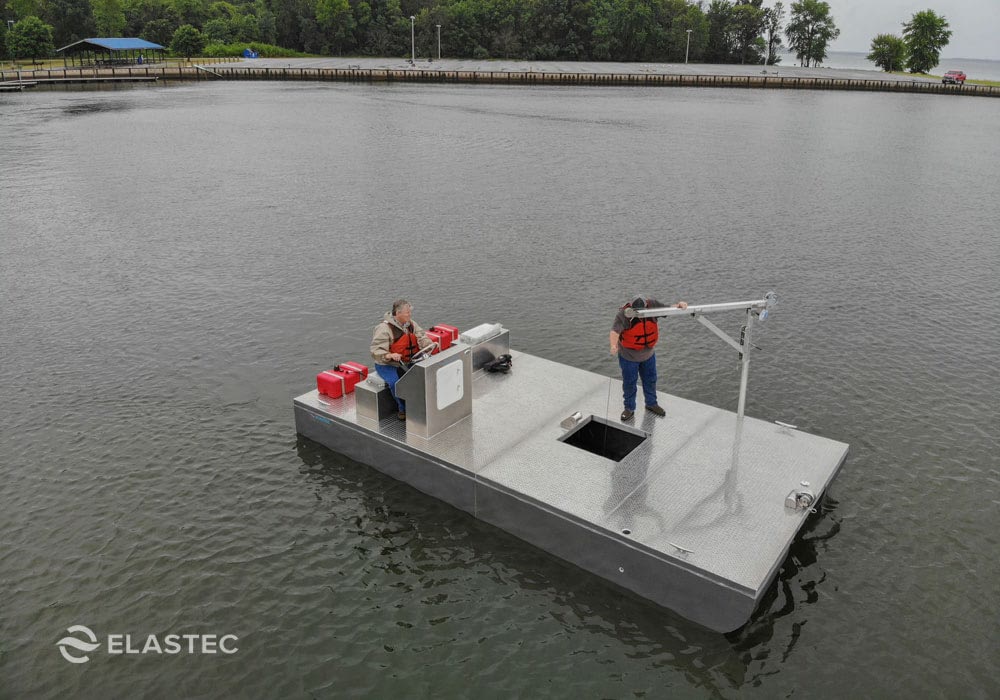

PROJECT: ANCHOR PLATFORM BOAT

Description

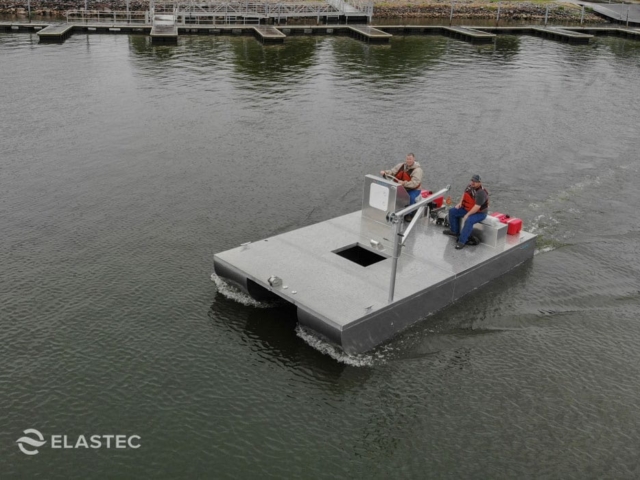

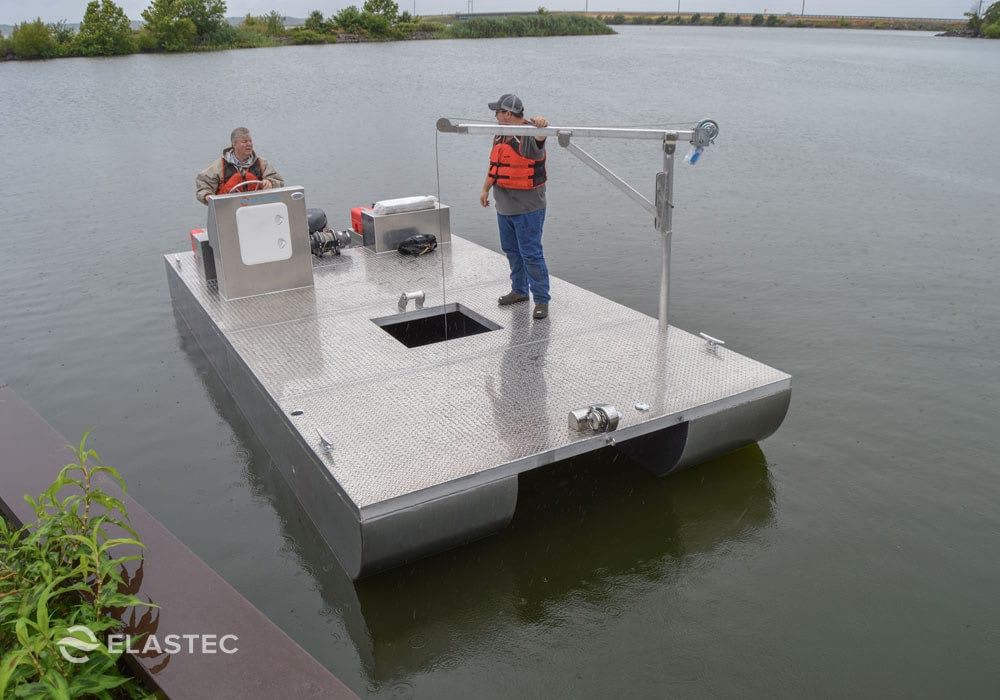

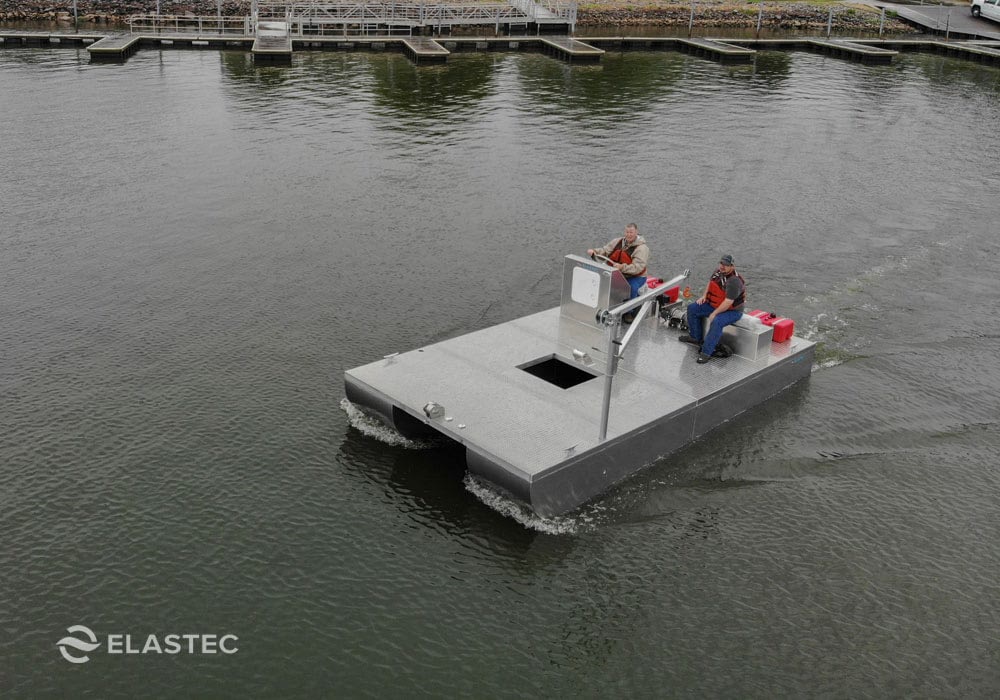

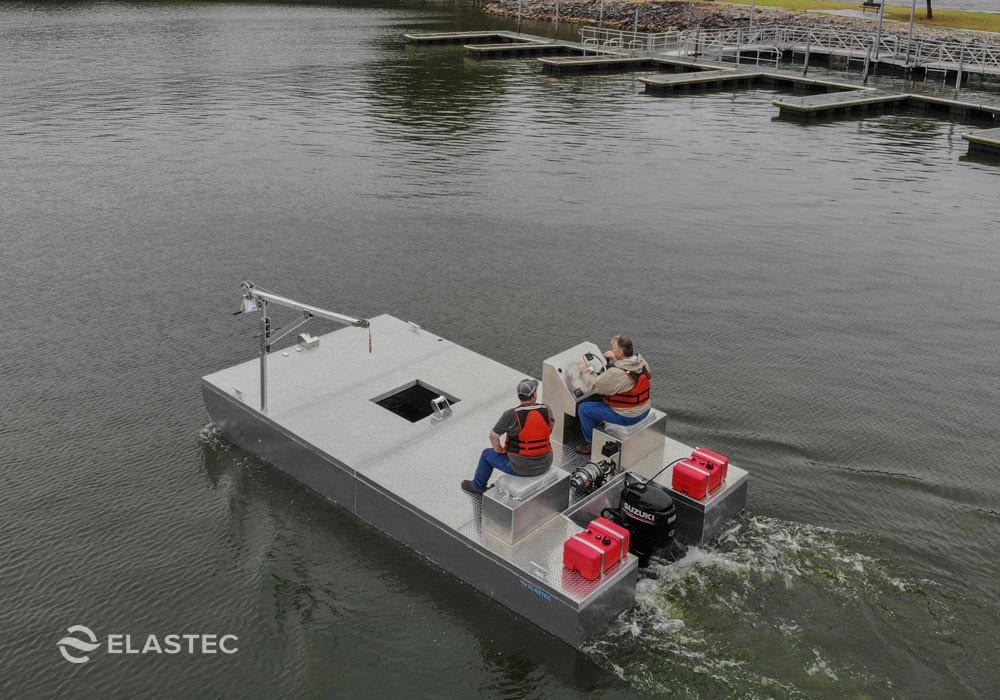

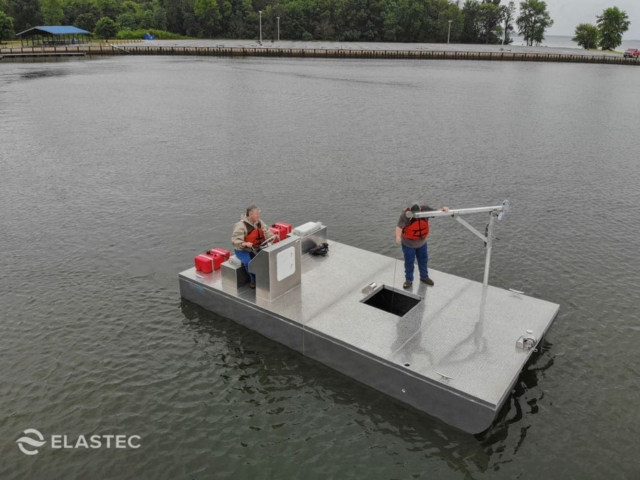

This platform boat was built to assist in anchor setting and positioning. The combination of the wench and davit allow for easy handling of moorings and anchors.

Maximum 15 MPH
Square modified catamaran
Single Outboard

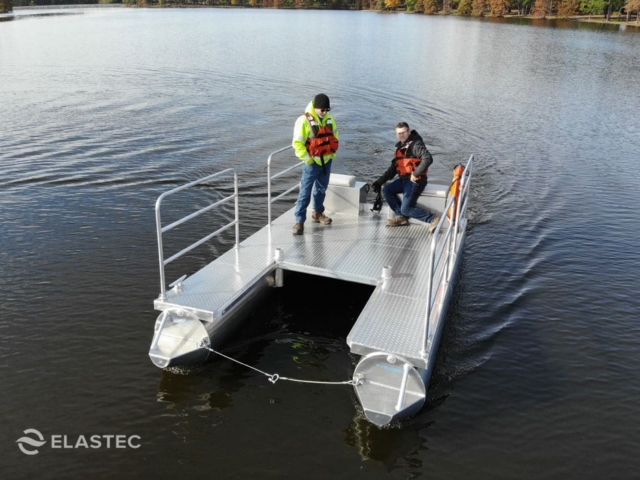

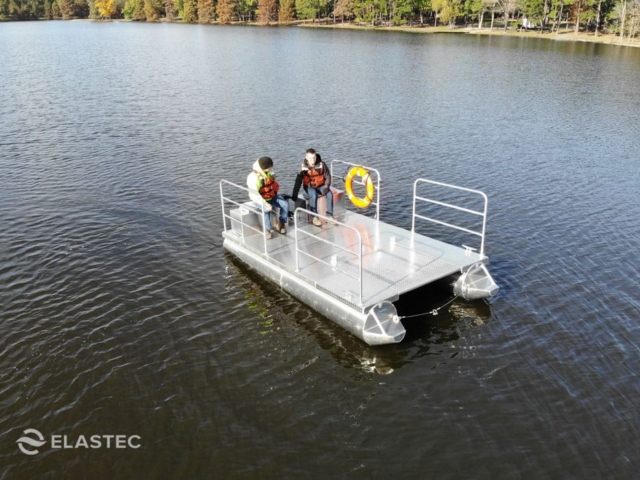

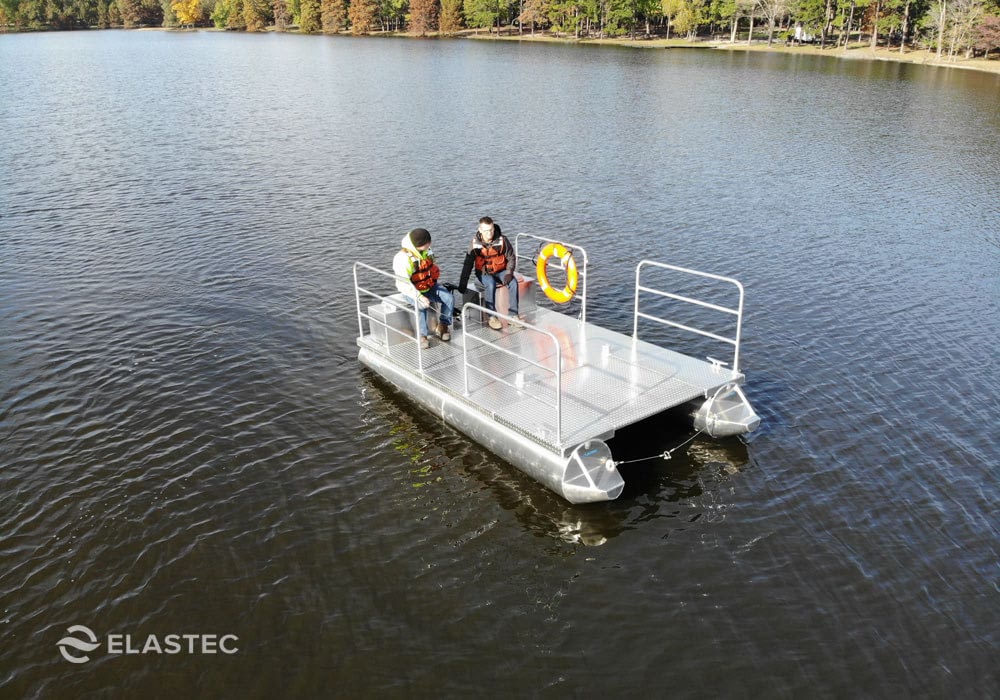

PROJECT: MINI PLATFORM BOAT

Description

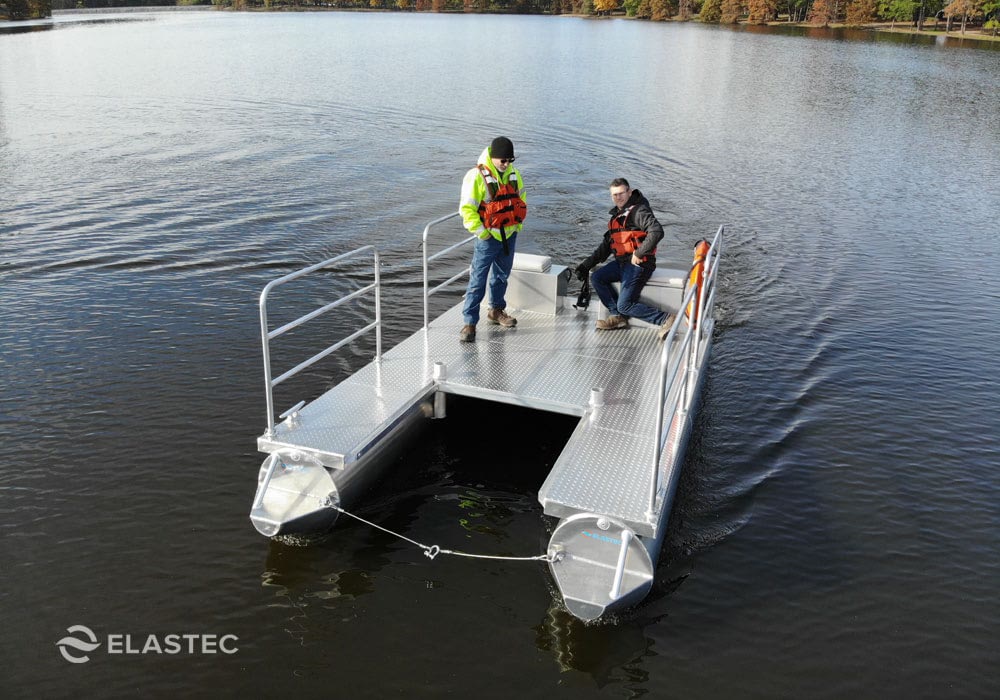

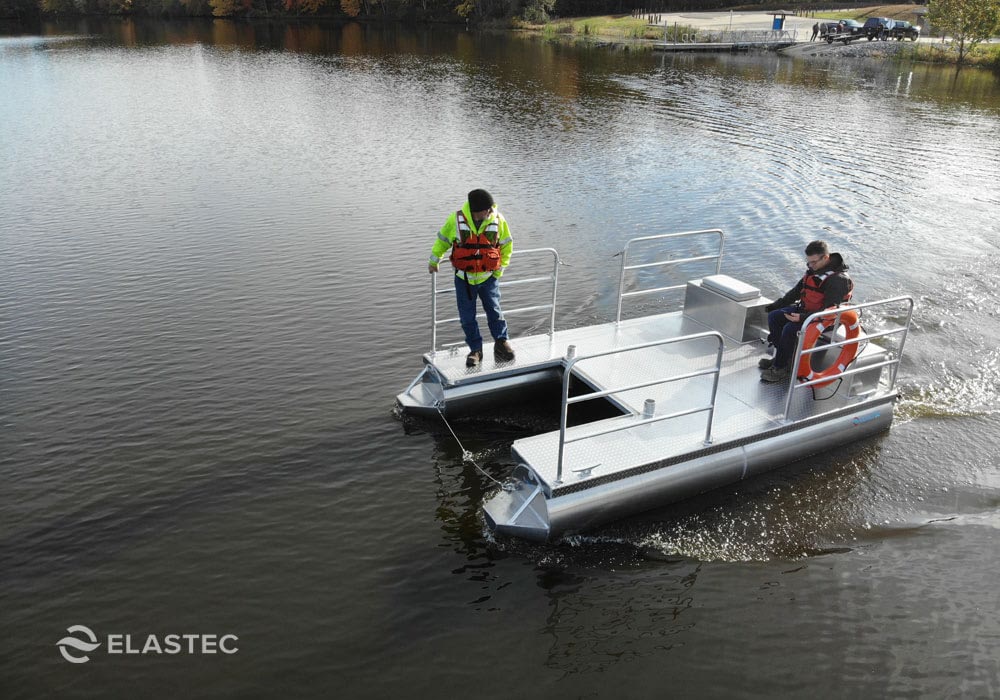

This platform boat was built to be lightweight and maneuverable. It has a shorter length for use in small bodies of water or wastewater lagoons. The cutout is designed to aid in the maintenance of pumps and aerators. It was offered with a tilt trailer to aid in launching without a boat ramp.

Maximum 15 MPH
Round modified catamaran
Single Outboard

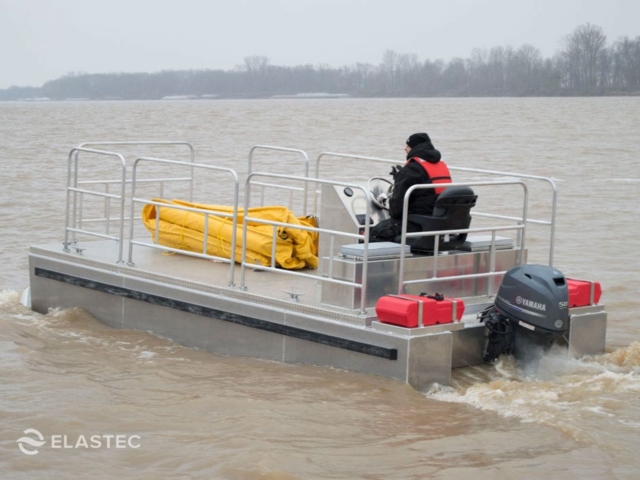

PROJECT: LAKE MAINTENANCE PLATFORM BOAT

Description

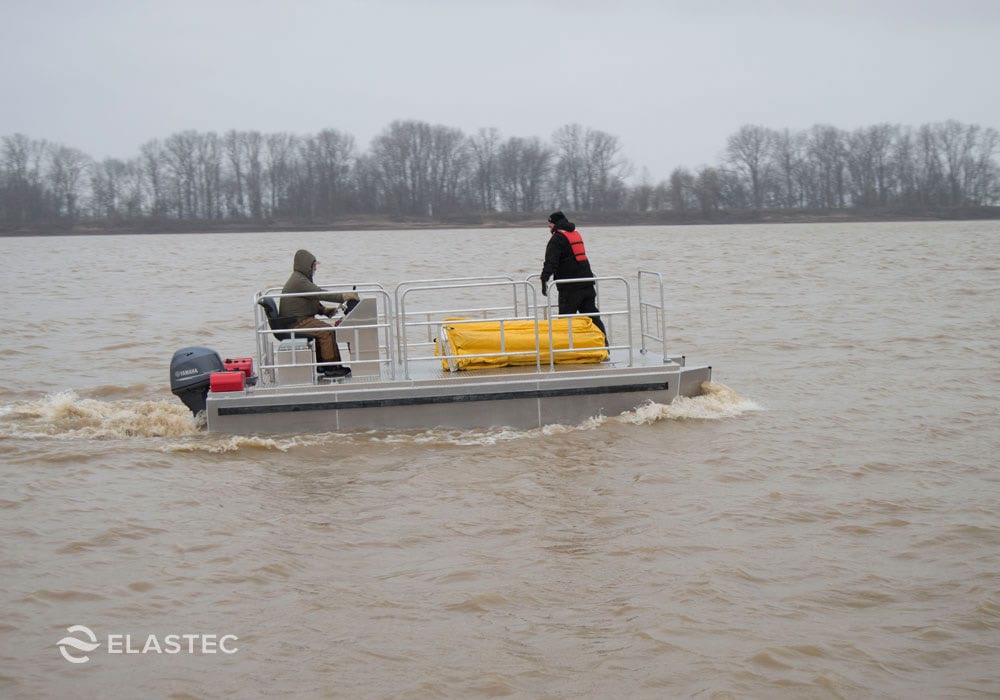

This platform boat was built to provide a stable working platform for all types of waterway maintenance. It features removable hand-rails to allow loading and unloading, and easier access to the water.

Maximum 15 MPH
Modified catamaran
Single Outboard

Platform Boat Specifications

HULL

  • Two pressure tested hulls constructed from 3/16 in / 4.7 mm marine-grade aluminum linked by traverse beams
  • Separate water-tight compartments
  • Four heavy duty aluminum deck welded mooring cleats
  • Zinc Anode Protection

DECK

The deck is 3/16 Marine Grade aluminum Diamond Tread. The subframe in constructed of 3 inch aluminum channel.

RAILING

Removable (lift off) aluminum safety handrails, recessmounted to the hull for easy loading of wheel-on equipment/storage containers.

FENDERING

Protective fendering constructed of solid 3 inch x 11/2 inch EDPM rubber runs horizontally below deck level and vertically at the bow of each hull.

PILOT / CREW SEATING AND EQUIPMENT STORAGE

Cushioned plastic molded helm seat with arms and two cushioned crew seats are affixed to a 12 ½ cubic foot storage bench.

Standard Equipment

  • All aluminum console
  • Uflex Accura™ Steering System
  • 12 Volt electric system
  • Breaker switch panel
  • USCG LED Navigation lighting
  • Horn
  • Removable handrails
  • Diamond tread deck plating
  • Removable handrails
  • Zinc anode protection

Optional Equipment

  • Fire extinguisher (US sales)
  • Flotation ring
  • Personal floatation devices (lifejackets)

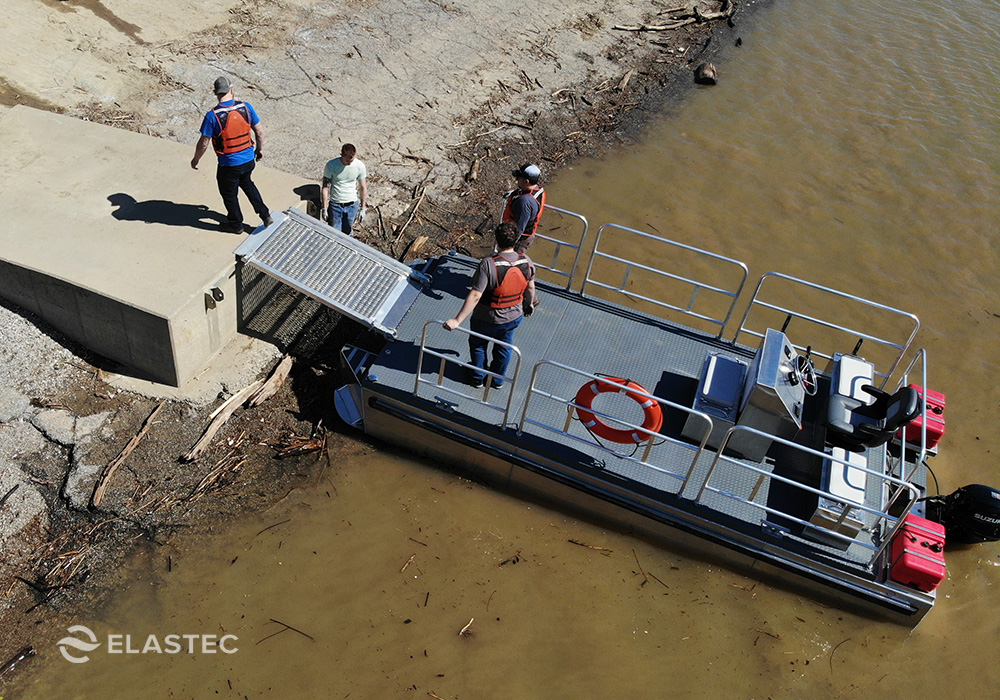

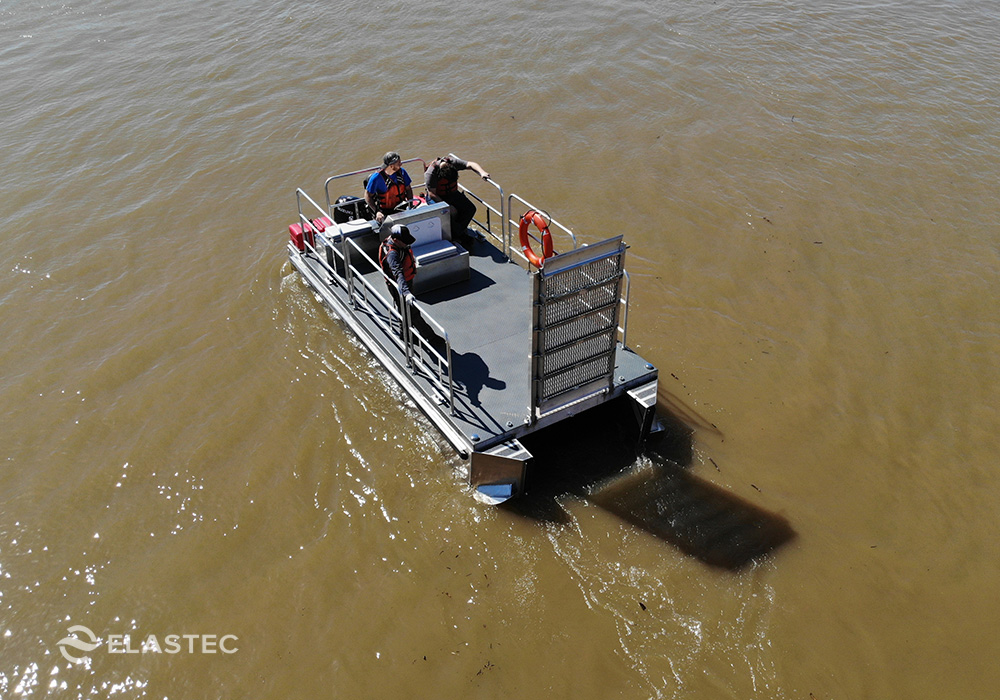

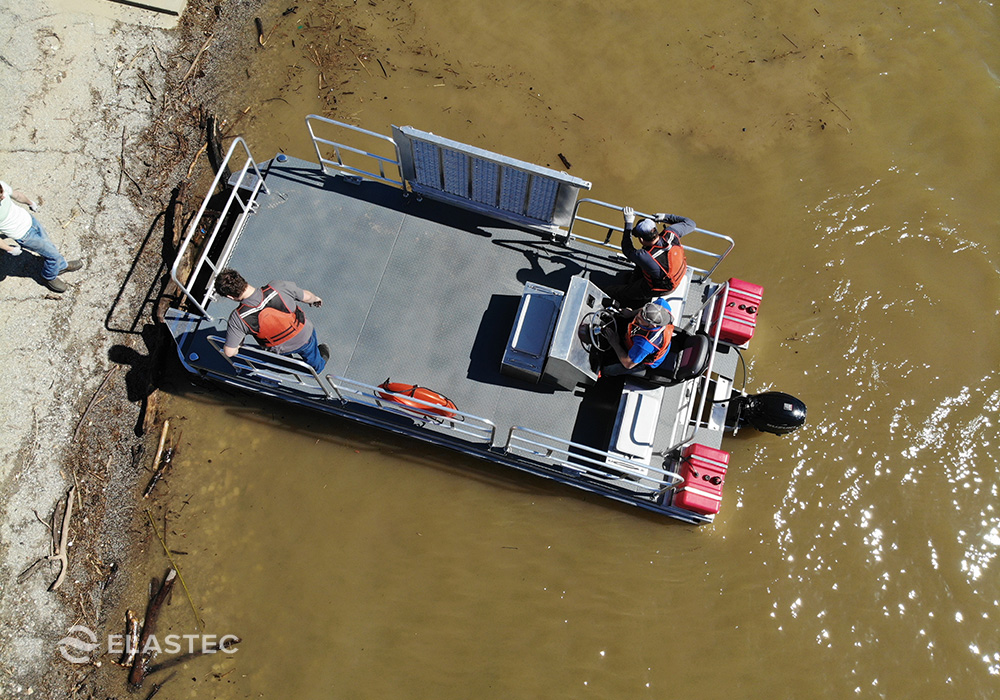

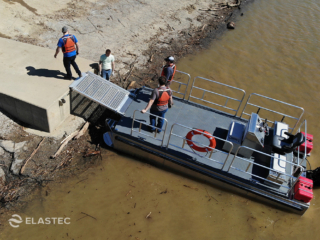

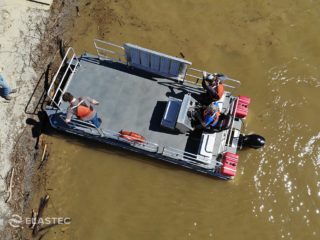

  • External bow ramp
  • Bimini top
  • Marine VHF radio
  • Depth sounder
  • Chart plotter

Suzuki Motor Options

  • Suzuki 25HP
  • Suzuki 50HP
    (Options available on request)

All Suzuki motor systems include:

  • Power trim and tilt
  • Digital gauges
  • Aluminum prop
  • Fuel tank

Trailer Options

  • Galvanized 4,500 lb / 2,041 kg
  • Dual axle with hydraulic surge brakes each axel
  • Spare tire with disc hub assembly
  • Tongue jack with foot

*Other motor configurations are available. Maximum speed is determined by motor horsepower and other factors.
